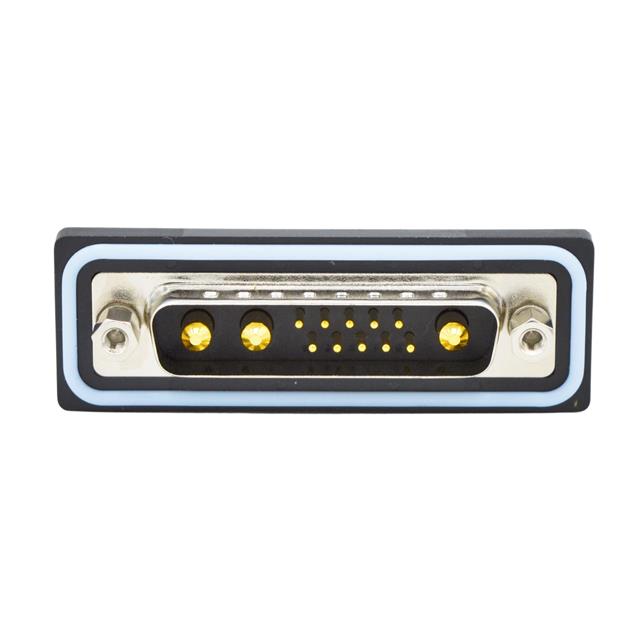

Specification	CDFS13W3103L411

Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal, Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions (Normal)	10
Number of Positions (Power)	3
Number of Positions (Total)	13
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	13C3, 13W3
Shell Material	Steel
Shell Size	3
Termination	Solder Cup

CDFS13W Series

Part	Contact Type	Termination	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Flange Feature	Material Flammability Rating	Contact Finish	Shell Material	Finish	Connector Style	Number of Rows	Mounting Type	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Size	Connector Layout	Part Code	Dielectric Material	Contact Form	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Features
NorComp Inc. CDFS13W3203L211	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Female Sockets Receptacle	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	0	Flash	Flash	3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C
NorComp Inc. CDFS13W3103L211	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	0	Flash	Flash	3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C	Grounding Indents
NorComp Inc. CDFS13W3203L411	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Female Sockets Receptacle	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	0	Flash	Flash	3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C
NorComp Inc. CDFS13W3203L412	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Female Sockets Receptacle	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	30 µin			3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C
NorComp Inc. CDFS13W3203L212	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Female Sockets Receptacle	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	30 µin			3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C
NorComp Inc. CDFS13W3103L411	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	0	Flash	Flash	3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C	Grounding Indents
NorComp Inc. CDFS13W3103L212	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	30 µin			3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C	Grounding Indents
NorComp Inc. CDFS13W3103L412	Power Signal	Solder Cup	Dust Tight Waterproof	IP67	Male Pins Plug	Female Screwlock (4-40) Mating Side	UL94 V-0	Gold	Steel	Nickel Plated	Combo D-Sub	2	Panel Mount	3	13	10	30 µin			3	B DB	13C3 13W3	Polybutylene Terephthalate (PBT)	Machined	Brass	85 °C	-25 °C	Grounding Indents
