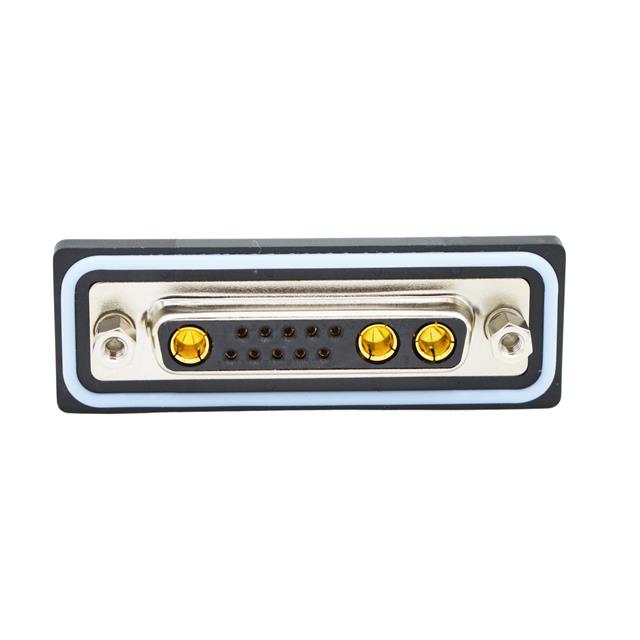

CDFS13W3203L411

Active

MH Connectors

CONN D-SUB RCPT 13POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

CDFS13W3203L411

Active

MH Connectors

CONN D-SUB RCPT 13POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFS13W3203L411

Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3

CDFS13W Series

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Number of Rows	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Ingress Protection	Dielectric Material	Contact Finish	Contact Type	Connector Style	Connector Type	Flange Feature	Features	Contact Finish Thickness	Contact Finish Thickness
MH Connectors CDFS13W3203L211	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C	Flash	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side
MH Connectors CDFS13W3103L211	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C	Flash	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents
MH Connectors CDFS13W3203L411	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C	Flash	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side
MH Connectors CDFS13W3203L412	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C		IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side		0.76 Ám	30 Áin
MH Connectors CDFS13W3203L212	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C		IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side		0.76 Ám	30 Áin
MH Connectors CDFS13W3103L411	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C	Flash	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents
MH Connectors CDFS13W3103L212	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C		IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents	0.76 Ám	30 Áin
MH Connectors CDFS13W3103L412	13C3 13W3 B DB	3	10	3	UL94 V-0	2	Nickel Plated Steel	Brass	-25 °C	85 °C		IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Gold	Signal and Power	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 22.46
		10	$ 17.31
		25	$ 15.67
		40	$ 14.90
		80	$ 13.87
		230	$ 12.47
		440	$ 11.71

Description

General part information

CDFS13W Series

13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
