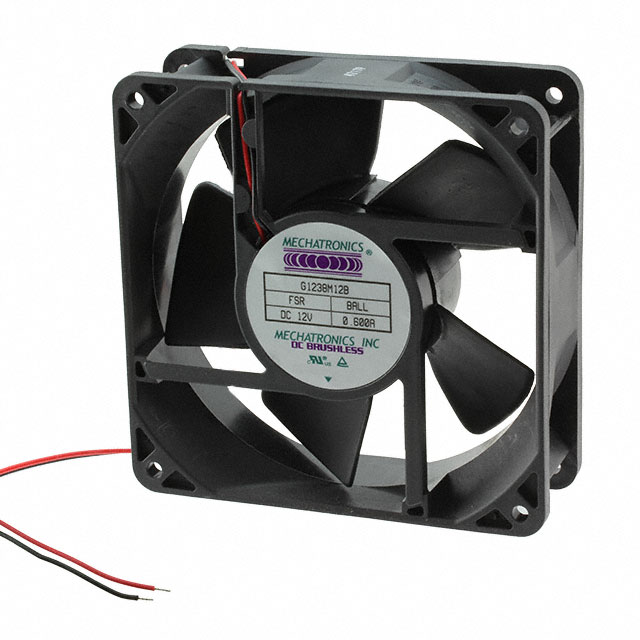

G1238M12B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 119X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs AC/DC Fans & Blowers Catalog +2

G1238M12B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 119X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.91
		10	$ 18.05
		25	$ 16.98
		50	$ 16.33
		100	$ 15.04
		250	$ 14.08
		500	$ 13.86

Description

General part information

G1238 Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 125.0 CFM (3.50mł/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

AC/DC Fans & Blowers Catalog

Datasheet

DC Fan, Blower Lead Wire Spec

Datasheet

Specification	G1238M12B-FSR	G1238 Series

Air Flow	-	2.46 - 107 m³/min
Air Flow	-	88 - 158 CFM
Air Flow	-	158 CFM
Air Flow	-	3 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	600 mA	0.18 - 750 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach), Conformal Coating, Locked Rotor Sensor, PWM Control
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	43 dB	34 - 49 dB
RPM	2800 RPM	2000 - 3600 RPM
Size / Dimension [x]	119 mm	119 - 120 mm
Size / Dimension [y]	119 mm	119 - 120 mm
Static Pressure	0.32 in H2O	0.17 - 0.49 in H2O
Static Pressure	79.7 Pa	42.3 - 122.1 Pa
Termination	2 Wire Leads	2 Wire Leads, 4 Wire Leads, 3 Wire Leads, 5 Wire Leads
Voltage - Rated	12 VDC	12 - 24 VDC
Voltage - Rated	-	48 VDC
Weight	335.66 g	335.66 - 340.19 g
Weight	0.74 lb	0.74 - 0.75 lb
Width [y]	38 mm	38 mm

Part

Size / Dimension [y]

Size / Dimension [x]

Approval Agency

Width [y]

Weight

Static Pressure

Material - Blade

Bearing Type

Features

Noise

Current Rating (Amps)

Fan Type

Termination

RPM

Voltage - Rated

Ingress Protection

Air Flow

Voltage - Rated [custom]

Air Flow

Mechatronics Fan Group

G1238M12B-FSR

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.32 in H2O

79.7 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

43 dB

600 mA

Tubeaxial

2 Wire Leads

2800 RPM

12 VDC

Mechatronics Fan Group

G1238H12B-FSR-EM

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.41 in H2O

102.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

46 dB(A)

750 mA

Tubeaxial

2 Wire Leads

3200 RPM

12 VDC

IP57 - Dust Protected, Waterproof

3.95 m³/min

141.2 CFM

Mechatronics Fan Group

G1238E12B-FSR

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

2 Wire Leads

3600 RPM

12 VDC

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238H24B1-FSR-WS

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.41 in H2O

102.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

46 dB(A)

450 mA

Tubeaxial

4 Wire Leads

3200 RPM

24 VDC

3.95 m³/min

141.2 CFM

Mechatronics Fan Group

G1238M24B1-FSR-TTL

120 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.32 in H2O

79.7 Pa

Polybutylene Terephthalate (PBT)

Ball

Speed Sensor (Tach), Thermal Overload Protector (TOP)

43 dB

0.33 A

Tubeaxial

3 Wire Leads

2800 RPM

24 VDC

3.5 m³/min

125 CFM

Mechatronics Fan Group

G1238E24B-FSR-CC

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Conformal Coating, Thermal Overload Protector (TOP)

49 dB

600 mA

Tubeaxial

2 Wire Leads

3600 RPM

24 VDC

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238H24B1-FSR-WS-EM

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.41 in H2O

102.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

46 dB(A)

450 mA

Tubeaxial

4 Wire Leads

3200 RPM

24 VDC

IP57 - Dust Protected, Waterproof

3.95 m³/min

141.2 CFM

Mechatronics Fan Group

G1238E12B1-FSR-WS-EM

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

4 Wire Leads

3600 RPM

12 VDC

IP57 - Dust Protected, Waterproof

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238E12B1-FSR-WS

119 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

4 Wire Leads

3600 RPM

12 VDC

4.42 m³/min

158 CFM

Mechatronics Fan Group

G1238E12B-FSR-EM-RL

120 mm

CE, cUL, TUV, UL

38 mm

335.66 g

0.74 lb

0.49 in H2O

122.1 Pa

Polybutylene Terephthalate (PBT)

Ball

Thermal Overload Protector (TOP)

49 dB

1.2 A

Tubeaxial

2 Wire Leads

3600 RPM

12 VDC

4.42 m³/min

158 CFM

Part	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Material - Blade	Bearing Type	Features	Noise	Current Rating (Amps)	Fan Type	Termination	RPM	Voltage - Rated	Ingress Protection	Air Flow	Air Flow	Air Flow
Mechatronics Fan Group G1238M12B-FSR	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	43 dB	600 mA	Tubeaxial	2 Wire Leads	2800 RPM	12 VDC
Mechatronics Fan Group G1238H12B-FSR-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	46 dB(A)	750 mA	Tubeaxial	2 Wire Leads	3200 RPM	12 VDC	IP57 - Dust Protected, Waterproof	3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238E12B-FSR	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	2 Wire Leads	3600 RPM	12 VDC		4.42 m³/min	158 CFM
Mechatronics Fan Group G1238H24B1-FSR-WS	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	46 dB(A)	450 mA	Tubeaxial	4 Wire Leads	3200 RPM	24 VDC		3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238M24B1-FSR-TTL	120 mm	120 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	Speed Sensor (Tach), Thermal Overload Protector (TOP)	43 dB	0.33 A	Tubeaxial	3 Wire Leads	2800 RPM	24 VDC		3.5 m³/min	125 CFM
Mechatronics Fan Group G1238E24B-FSR-CC	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Conformal Coating, Thermal Overload Protector (TOP)	49 dB	600 mA	Tubeaxial	2 Wire Leads	3600 RPM	24 VDC		4.42 m³/min	158 CFM
Mechatronics Fan Group G1238H24B1-FSR-WS-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	46 dB(A)	450 mA	Tubeaxial	4 Wire Leads	3200 RPM	24 VDC	IP57 - Dust Protected, Waterproof	3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238E12B1-FSR-WS-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	4 Wire Leads	3600 RPM	12 VDC	IP57 - Dust Protected, Waterproof	4.42 m³/min	158 CFM
Mechatronics Fan Group G1238E12B1-FSR-WS	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	4 Wire Leads	3600 RPM	12 VDC		4.42 m³/min		158 CFM
Mechatronics Fan Group G1238E12B-FSR-EM-RL	120 mm	120 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	2 Wire Leads	3600 RPM	12 VDC		4.42 m³/min	158 CFM
