G1238M24B1-FSR-TTL

Active

Mechatronics Fan Group

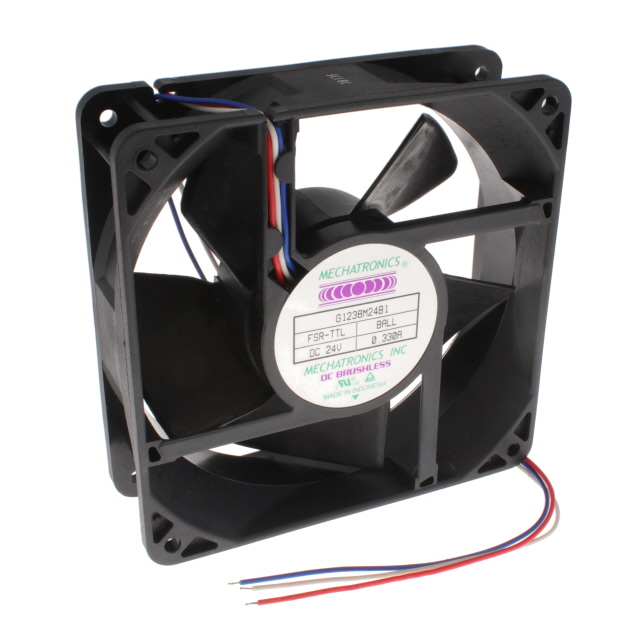

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet

G1238M24B1-FSR-TTL

Active

Mechatronics Fan Group

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.51
		10	$ 13.83
		25	$ 13.21
		50	$ 13.06

Description

General part information

G1238 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 125.0 CFM (3.50m³/min) 3 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	G1238M24B1-FSR-TTL	G1238 Series

Air Flow	125 CFM	88 - 158 CFM
Air Flow	3.5 m³/min	2.46 - 107 m³/min
Air Flow	-	158 CFM
Air Flow	-	3 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.33 A	0.18 - 750 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach), Conformal Coating, Locked Rotor Sensor, PWM Control
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	43 dB	34 - 49 dB
RPM	2800 RPM	2000 - 3600 RPM
Size / Dimension [x]	120 mm	119 - 120 mm
Size / Dimension [y]	120 mm	119 - 120 mm
Static Pressure	0.32 in H2O	0.17 - 0.49 in H2O
Static Pressure	79.7 Pa	42.3 - 122.1 Pa
Termination	3 Wire Leads	2 Wire Leads, 4 Wire Leads, 3 Wire Leads, 5 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Voltage - Rated	-	48 VDC
Weight	335.66 g	335.66 - 340.19 g
Weight	0.74 lb	0.74 - 0.75 lb
Width [y]	38 mm	38 mm

G1238 Series

FAN AXIAL 119X38MM 12VDC WIRE

Part	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Material - Blade	Bearing Type	Features	Noise	Current Rating (Amps)	Fan Type	Termination	RPM	Voltage - Rated	Ingress Protection	Air Flow	Air Flow	Air Flow
Mechatronics Fan Group G1238M12B-FSR	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	43 dB	600 mA	Tubeaxial	2 Wire Leads	2800 RPM	12 VDC
Mechatronics Fan Group G1238H12B-FSR-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	46 dB(A)	750 mA	Tubeaxial	2 Wire Leads	3200 RPM	12 VDC	IP57 - Dust Protected, Waterproof	3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238E12B-FSR	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	2 Wire Leads	3600 RPM	12 VDC		4.42 m³/min	158 CFM
Mechatronics Fan Group G1238H24B1-FSR-WS	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	46 dB(A)	450 mA	Tubeaxial	4 Wire Leads	3200 RPM	24 VDC		3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238M24B1-FSR-TTL	120 mm	120 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	Speed Sensor (Tach), Thermal Overload Protector (TOP)	43 dB	0.33 A	Tubeaxial	3 Wire Leads	2800 RPM	24 VDC		3.5 m³/min	125 CFM
Mechatronics Fan Group G1238E24B-FSR-CC	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Conformal Coating, Thermal Overload Protector (TOP)	49 dB	600 mA	Tubeaxial	2 Wire Leads	3600 RPM	24 VDC		4.42 m³/min	158 CFM
Mechatronics Fan Group G1238H24B1-FSR-WS-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.41 in H2O	102.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	46 dB(A)	450 mA	Tubeaxial	4 Wire Leads	3200 RPM	24 VDC	IP57 - Dust Protected, Waterproof	3.95 m³/min	141.2 CFM
Mechatronics Fan Group G1238E12B1-FSR-WS-EM	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	4 Wire Leads	3600 RPM	12 VDC	IP57 - Dust Protected, Waterproof	4.42 m³/min	158 CFM
Mechatronics Fan Group G1238E12B1-FSR-WS	119 mm	119 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	4 Wire Leads	3600 RPM	12 VDC		4.42 m³/min		158 CFM
Mechatronics Fan Group G1238E12B-FSR-EM-RL	120 mm	120 mm	CE, cUL, TUV, UL	38 mm	335.66 g	0.74 lb	0.49 in H2O	122.1 Pa	Polybutylene Terephthalate (PBT)	Ball	Thermal Overload Protector (TOP)	49 dB	1.2 A	Tubeaxial	2 Wire Leads	3600 RPM	12 VDC		4.42 m³/min	158 CFM
