A6H-4101(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6H-4101(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6H-4101(VNM) | A6H Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed, Raised |
| Actuator Type | Slide (Standard) | Slide (Standard), Piano |
| Circuit | SPST | SPST |
| Contact Finish | - | Gold |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 1000 Cycles | 1000 Cycles |
| Features | - | Tape Seal |
| Height Above Board | - | 0.165 " |
| Height Above Board | - | 4.2 mm |
| Height Above Board [z] | 0.061 " | 0.061 - 0.091 in |
| Height Above Board [z] | 1.55 mm | 1.55 - 2.3 mm |
| Length | - | 3.67 - 11.39 mm |
| Length | - | 0.144 - 0.448 " |
| Length | - | 0.244 in |
| Length | - | 6.2 mm |
| Length [x] | 6.31 mm | 6.31 - 13.93 mm |
| Length [x] | 0.248 in | 0.248 - 0.548 in |
| Mechanical Life | 1000 Cycles | 1000 Cycles |
| Mounting Type | Surface Mount | Surface Mount, Surface Mount, Right Angle |
| Number of Positions | 4 | 2 - 10 |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | -20 C | -30 - -20 ░C |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Termination Style | Gull Wing | Gull Wing |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | False | True, False |
A6H Series
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Actuator Level | Actuator Type | Length | Length | Number of Positions | Circuit | Termination Style | Mounting Type | Washable | Voltage Rating | Current Rating (Amps) | Contact Finish | Electrical Life | Height Above Board [z] | Height Above Board [z] | Mechanical Life | Length [x] | Length [x] | Height Above Board | Height Above Board | Length [custom] | Length [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6HF-2102-P | 0.05 in | 1.27 mm | -30 ░C | 85 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 3.67 mm | 0.144 " | 2 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | Gold | 1000 Cycles | 0.091 in | 2.3 mm | ||||||||
Omron Electronics Inc-EMC Div A6H-8102(VNM) | 0.05 in | 1.27 mm | -20 C | 70 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 11.39 mm | 0.448 " | 8 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles | ||||||||
Omron Electronics Inc-EMC Div A6H-0102(VNM) | 0.05 in | 1.27 mm | -20 C | 70 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 10 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles | 13.93 mm | 0.548 in | ||||||||
Omron Electronics Inc-EMC Div A6HF-6102-PM | 0.05 in | 1.27 mm | -30 ░C | 85 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 8.75 mm | 0.344 " | 6 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | Gold | 1000 Cycles | 0.091 in | 2.3 mm | ||||||||
Omron Electronics Inc-EMC Div A6H-2101-R100(VNM) | 0.05 in | 1.27 mm | -20 C | 70 °C | Flush, Recessed | Slide (Standard) | 3.77 mm | 0.148 " | 2 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles | |||||||||
Omron Electronics Inc-EMC Div A6H-0102-R100(VNM) | 0.05 in | 1.27 mm | -20 C | 70 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 10 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles | 13.93 mm | 0.548 in | ||||||||
Omron Electronics Inc-EMC Div A6H-8101-R100(VNM) | 0.05 in | 1.27 mm | -20 C | 70 °C | Flush, Recessed | Slide (Standard) | 11.39 mm | 0.448 " | 8 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles | |||||||||
Omron Electronics Inc-EMC Div A6H-4102-P | 0.05 in | 1.27 mm | -20 C | 70 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 4 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles | 6.31 mm | 0.248 in | ||||||||
Omron Electronics Inc-EMC Div A6HF-8102-R100 | 0.05 in | 1.27 mm | -30 ░C | 85 °C | Tape Seal | Flush, Recessed | Slide (Standard) | 8 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | Gold | 1000 Cycles | 0.091 in | 2.3 mm | 11.28 mm | 0.444 in | ||||||||
Omron Electronics Inc-EMC Div A6H-8101-PM(VNM) | 0.05 in | 1.27 mm | -20 C | 70 °C | Flush, Recessed | Slide (Standard) | 11.39 mm | 0.448 " | 8 | SPST | Gull Wing | Surface Mount | 24 VDC | 25 mA | 1000 Cycles | 0.061 " | 1.55 mm | 1000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.44 | |
| 10 | $ 2.34 | |||
| 75 | $ 1.99 | |||
| 150 | $ 1.85 | |||
| 300 | $ 1.79 | |||
Description
General part information
A6H Series

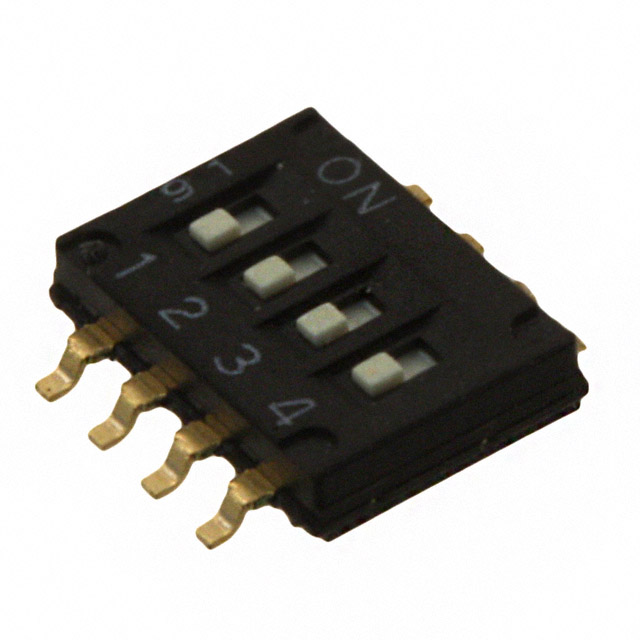

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
