A6HF-6102-PM

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6HF-6102-PM

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.75
		10	$ 3.60
		25	$ 3.28
		100	$ 2.85
		250	$ 2.58
	Digi-Reel®	1	$ 3.75
		10	$ 3.60
		25	$ 3.28
		100	$ 2.85
		250	$ 2.58
	Tape & Reel (TR)	500	$ 2.37
		1000	$ 2.21
		1500	$ 2.13
		2500	$ 2.02
		3500	$ 1.95
		5000	$ 1.93

Description

General part information

A6H Series

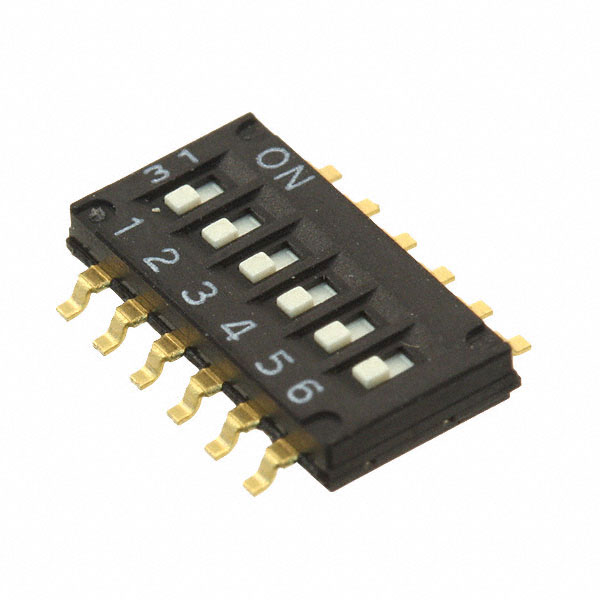

Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Specification	A6HF-6102-PM	A6H Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard), Piano
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	Tape Seal	Tape Seal
Height Above Board	-	0.165 "
Height Above Board	-	4.2 mm
Height Above Board [z]	0.091 in	0.061 - 0.091 in
Height Above Board [z]	2.3 mm	1.55 - 2.3 mm
Length	8.75 mm	3.67 - 11.39 mm
Length	0.344 "	0.144 - 0.448 "
Length	-	6.31 - 13.93 mm
Length	-	0.248 - 0.548 in
Length	-	0.244 in
Length	-	6.2 mm
Mechanical Life	-	1000 Cycles
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle
Number of Positions	6	2 - 10
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-30 ░C	-30 - -20 ░C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	True	True, False

Part

Pitch [x]

Operating Temperature [Min]

Operating Temperature [Max]

Features

Actuator Level

Actuator Type

Length

Number of Positions

Circuit

Termination Style

Mounting Type

Washable

Voltage Rating

Current Rating (Amps)

Contact Finish

Electrical Life

Height Above Board [z]

Mechanical Life

Length [x]

Height Above Board

Length [custom]

Omron Electronics Inc-EMC Div

A6HF-2102-P

0.05 in

1.27 mm

-30 ░C

85 °C

Tape Seal

Flush, Recessed

Slide (Standard)

3.67 mm

0.144 "

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

Gold

1000 Cycles

0.091 in

2.3 mm

Omron Electronics Inc-EMC Div

A6H-8102(VNM)

0.05 in

1.27 mm

-20 C

70 °C

Tape Seal

Flush, Recessed

Slide (Standard)

11.39 mm

0.448 "

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

Omron Electronics Inc-EMC Div

A6H-0102(VNM)

0.05 in

1.27 mm

-20 C

70 °C

Tape Seal

Flush, Recessed

Slide (Standard)

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

13.93 mm

0.548 in

Omron Electronics Inc-EMC Div

A6HF-6102-PM

0.05 in

1.27 mm

-30 ░C

85 °C

Tape Seal

Flush, Recessed

Slide (Standard)

8.75 mm

0.344 "

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

Gold

1000 Cycles

0.091 in

2.3 mm

Omron Electronics Inc-EMC Div

A6H-2101-R100(VNM)

0.05 in

1.27 mm

-20 C

70 °C

Flush, Recessed

Slide (Standard)

3.77 mm

0.148 "

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

Omron Electronics Inc-EMC Div

A6H-0102-R100(VNM)

0.05 in

1.27 mm

-20 C

70 °C

Tape Seal

Flush, Recessed

Slide (Standard)

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

13.93 mm

0.548 in

Omron Electronics Inc-EMC Div

A6H-8101-R100(VNM)

0.05 in

1.27 mm

-20 C

70 °C

Flush, Recessed

Slide (Standard)

11.39 mm

0.448 "

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

Omron Electronics Inc-EMC Div

A6H-4102-P

0.05 in

1.27 mm

-20 C

70 °C

Tape Seal

Flush, Recessed

Slide (Standard)

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

6.31 mm

0.248 in

Omron Electronics Inc-EMC Div

A6HF-8102-R100

0.05 in

1.27 mm

-30 ░C

85 °C

Tape Seal

Flush, Recessed

Slide (Standard)

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

Gold

1000 Cycles

0.091 in

2.3 mm

11.28 mm

0.444 in

Omron Electronics Inc-EMC Div

A6H-8101-PM(VNM)

0.05 in

1.27 mm

-20 C

70 °C

Flush, Recessed

Slide (Standard)

11.39 mm

0.448 "

SPST

Gull Wing

Surface Mount

24 VDC

25 mA

1000 Cycles

0.061 "

1.55 mm

1000 Cycles

Part	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Actuator Level	Actuator Type	Length	Length	Number of Positions	Circuit	Termination Style	Mounting Type	Voltage Rating	Current Rating (Amps)	Contact Finish	Electrical Life	Height Above Board [z]	Height Above Board [z]	Mechanical Life	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6HF-2102-P	0.05 in	1.27 mm	-30 ░C	85 °C	Tape Seal	Flush, Recessed	Slide (Standard)	3.67 mm	0.144 "	2	SPST	Gull Wing	Surface Mount	24 VDC	25 mA	Gold	1000 Cycles	0.091 in	2.3 mm
Omron Electronics Inc-EMC Div A6H-8102(VNM)	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)	11.39 mm	0.448 "	8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
Omron Electronics Inc-EMC Div A6H-0102(VNM)	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)			10	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles	13.93 mm	0.548 in
Omron Electronics Inc-EMC Div A6HF-6102-PM	0.05 in	1.27 mm	-30 ░C	85 °C	Tape Seal	Flush, Recessed	Slide (Standard)	8.75 mm	0.344 "	6	SPST	Gull Wing	Surface Mount	24 VDC	25 mA	Gold	1000 Cycles	0.091 in	2.3 mm
Omron Electronics Inc-EMC Div A6H-2101-R100(VNM)	0.05 in	1.27 mm	-20 C	70 °C		Flush, Recessed	Slide (Standard)	3.77 mm	0.148 "	2	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
Omron Electronics Inc-EMC Div A6H-0102-R100(VNM)	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)			10	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles	13.93 mm	0.548 in
Omron Electronics Inc-EMC Div A6H-8101-R100(VNM)	0.05 in	1.27 mm	-20 C	70 °C		Flush, Recessed	Slide (Standard)	11.39 mm	0.448 "	8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
Omron Electronics Inc-EMC Div A6H-4102-P	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)			4	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles	6.31 mm	0.248 in
Omron Electronics Inc-EMC Div A6HF-8102-R100	0.05 in	1.27 mm	-30 ░C	85 °C	Tape Seal	Flush, Recessed	Slide (Standard)			8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA	Gold	1000 Cycles	0.091 in	2.3 mm		11.28 mm	0.444 in
Omron Electronics Inc-EMC Div A6H-8101-PM(VNM)	0.05 in	1.27 mm	-20 C	70 °C		Flush, Recessed	Slide (Standard)	11.39 mm	0.448 "	8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
