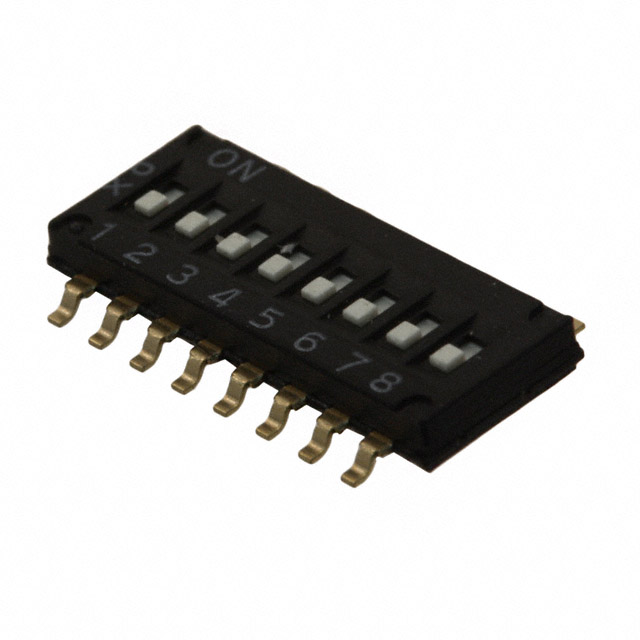

A6H-8101-R100(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6H-8101-R100(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6H-8101-R100(VNM)	A6H Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard), Piano
Circuit	SPST	SPST
Contact Finish	-	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Features	-	Tape Seal
Height Above Board	-	0.165 "
Height Above Board	-	4.2 mm
Height Above Board [z]	0.061 "	0.061 - 0.091 in
Height Above Board [z]	1.55 mm	1.55 - 2.3 mm
Length	0.448 "	0.144 - 0.448 "
Length	11.39 mm	3.67 - 11.39 mm
Length	-	6.31 - 13.93 mm
Length	-	0.248 - 0.548 in
Length	-	0.244 in
Length	-	6.2 mm
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle
Number of Positions	8	2 - 10
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-20 C	-30 - -20 ░C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	True, False

A6H Series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Actuator Level	Actuator Type	Length	Length	Number of Positions	Circuit	Termination Style	Mounting Type	Voltage Rating	Current Rating (Amps)	Contact Finish	Electrical Life	Height Above Board [z]	Height Above Board [z]	Mechanical Life	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6HF-2102-P	0.05 in	1.27 mm	-30 ░C	85 °C	Tape Seal	Flush, Recessed	Slide (Standard)	3.67 mm	0.144 "	2	SPST	Gull Wing	Surface Mount	24 VDC	25 mA	Gold	1000 Cycles	0.091 in	2.3 mm
Omron Electronics Inc-EMC Div A6H-8102(VNM)	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)	11.39 mm	0.448 "	8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
Omron Electronics Inc-EMC Div A6H-0102(VNM)	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)			10	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles	13.93 mm	0.548 in
Omron Electronics Inc-EMC Div A6HF-6102-PM	0.05 in	1.27 mm	-30 ░C	85 °C	Tape Seal	Flush, Recessed	Slide (Standard)	8.75 mm	0.344 "	6	SPST	Gull Wing	Surface Mount	24 VDC	25 mA	Gold	1000 Cycles	0.091 in	2.3 mm
Omron Electronics Inc-EMC Div A6H-2101-R100(VNM)	0.05 in	1.27 mm	-20 C	70 °C		Flush, Recessed	Slide (Standard)	3.77 mm	0.148 "	2	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
Omron Electronics Inc-EMC Div A6H-0102-R100(VNM)	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)			10	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles	13.93 mm	0.548 in
Omron Electronics Inc-EMC Div A6H-8101-R100(VNM)	0.05 in	1.27 mm	-20 C	70 °C		Flush, Recessed	Slide (Standard)	11.39 mm	0.448 "	8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles
Omron Electronics Inc-EMC Div A6H-4102-P	0.05 in	1.27 mm	-20 C	70 °C	Tape Seal	Flush, Recessed	Slide (Standard)			4	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles	6.31 mm	0.248 in
Omron Electronics Inc-EMC Div A6HF-8102-R100	0.05 in	1.27 mm	-30 ░C	85 °C	Tape Seal	Flush, Recessed	Slide (Standard)			8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA	Gold	1000 Cycles	0.091 in	2.3 mm		11.28 mm	0.444 in
Omron Electronics Inc-EMC Div A6H-8101-PM(VNM)	0.05 in	1.27 mm	-20 C	70 °C		Flush, Recessed	Slide (Standard)	11.39 mm	0.448 "	8	SPST	Gull Wing	Surface Mount	24 VDC	25 mA		1000 Cycles	0.061 "	1.55 mm	1000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.51
	Tape & Reel (TR)	4000	$ 1.89
