Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS2067EVM-294 | TPS2067 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Current - Output (Max) | - | 1 A |
| Embedded | False | False |
| Fault Protection | - | UVLO, Over Temperature, Current Limiting (Fixed) |
| Features | - | Status Flag |
| Function | Power Distribution Switch (Load Switch) | Power Distribution Switch (Load Switch) |
| Input Type | - | Non-Inverting |
| Interface | - | On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 3 |
| Operating Temperature | - | 125 ¯C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | 16-SOIC |
| Package / Case | - | 0.154 - 3.9 mm Width |
| Primary Attributes [Max] | 5.5 V | 5.5 V |
| Primary Attributes [Min] | 2.7 V | 2.7 V |
| Ratio - Input:Output | - | 1:1, 1:2 |
| Rds On (Typ) | - | 70 mOhm |
| Secondary Attributes | Undervoltage Protection, Thermal, Short-Circuit | Undervoltage Protection, Thermal, Short-Circuit |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-SOIC |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | TPS2067 | TPS2067 |
| Voltage - Load | - | 5.5 V |
| Voltage - Load | - | 2.7 V |
| Voltage - Supply (Vcc/Vdd) | - | Not Required |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS2067 Series
3-ch, 1A loading, 2.7-5.5V, 70mΩ USB power switch, active-high
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Input Type | Fault Protection | Output Type | Number of Outputs | Supplier Device Package | Voltage - Load [Max] | Voltage - Load [Min] | Rds On (Typ) | Package / Case | Package / Case | Voltage - Supply (Vcc/Vdd) | Interface | Switch Type | Features | Ratio - Input:Output [custom] | Current - Output (Max) [Max] | Mounting Type | Contents | Type | Primary Attributes [Max] | Primary Attributes [Min] | Embedded | Supplied Contents | Secondary Attributes | Function | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS2067DRThe TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V.
The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V. | 125 ¯C | -40 °C | High Side | Non-Inverting | Current Limiting (Fixed), Over Temperature, UVLO | N-Channel | 3 | 16-SOIC | 5.5 V | 2.7 V | 70 mOhm | 16-SOIC | 0.154 in, 3.9 mm Width | Not Required | On/Off | General Purpose | Status Flag | 1:1, 1:2 | 1 A | Surface Mount | |||||||||
125 ¯C | -40 °C | High Side | Non-Inverting | Current Limiting (Fixed), Over Temperature, UVLO | N-Channel | 3 | 16-SOIC | 5.5 V | 2.7 V | 70 mOhm | 16-SOIC | 0.154 in, 3.9 mm Width | Not Required | On/Off | General Purpose | Status Flag | 1:1, 1:2 | 1 A | Surface Mount | ||||||||||
Texas Instruments TPS2067DThe TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V.
The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V. | 125 ¯C | -40 °C | High Side | Non-Inverting | Current Limiting (Fixed), Over Temperature, UVLO | N-Channel | 3 | 16-SOIC | 5.5 V | 2.7 V | 70 mOhm | 16-SOIC | 0.154 in, 3.9 mm Width | Not Required | On/Off | General Purpose | Status Flag | 1:1, 1:2 | 1 A | Surface Mount | |||||||||

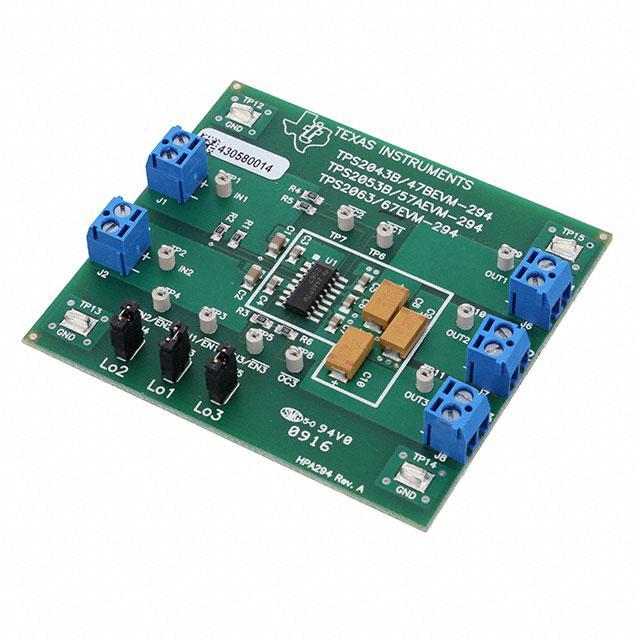

Texas Instruments TPS2067EVM-294TPS2067 Power Distribution Switch (Load Switch) Power Management Evaluation Board | Board(s) | Power Management | 5.5 V | 2.7 V | Board(s) | Short-Circuit, Thermal, Undervoltage Protection | Power Distribution Switch (Load Switch) | TPS2067 |
Description
General part information
TPS2067 Series
The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V.
The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V.
