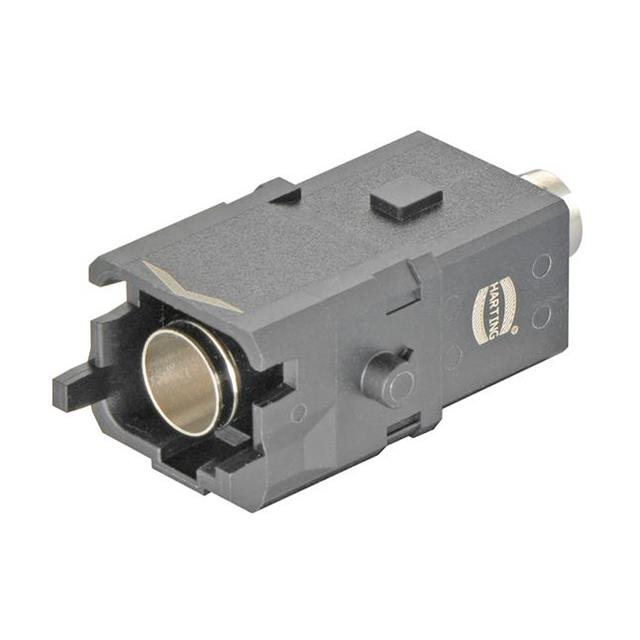

09100043006

Active

HARTING

CRIMP INSERT 4PIN CAT5 MALE

Search across all available documentation for this part.

Active

HARTING

CRIMP INSERT 4PIN CAT5 MALE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Black 4+Shield Position Crimp

Technical documentation and resources

Specification	09100043006	09100043 Series

	-	-
Color	Black	Black
Connector Type	Insert without Contacts	Insert without Contacts
Current Rating (Amps)	4 A	4 A
Gender	Male	Female, Male
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	4+Shield	4+Shield
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Termination Style	Crimp	Crimp

Part	Connector Type	Gender	Color	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Current Rating (Amps)	Number of Positions	Size	Material Flammability Rating	Termination Style
HARTING 09100043101	Insert without Contacts	Female	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043001	Insert without Contacts	Male	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043100
HARTING 09100043106	Insert without Contacts	Female	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043105
HARTING 09100043005
HARTING 09100043006	Insert without Contacts	Male	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043000
