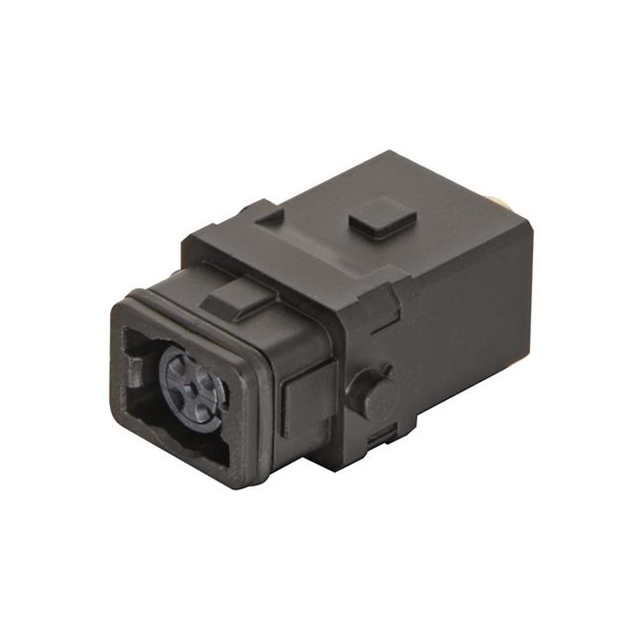

09100043105

Obsolete

HARTING

CRIMP INSERT 4PIN

Search across all available documentation for this part.

Obsolete

HARTING

CRIMP INSERT 4PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Position

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09100043105	09100043 Series

Color	-	Black
Connector Type	-	Insert without Contacts
Current Rating (Amps)	-	4 A
Gender	-	Female, Male
Housing Material	-	Polyamide (PA), Nylon
Material Flammability Rating	-	UL94 V-0
null		-
Number of Positions	-	4+Shield
Operating Temperature	-	-30 ░C
Operating Temperature	-	90 °C
Size	-	1 A
Termination Style	-	Crimp

CRIMP INSERT 4PIN FEMALE

Part	Connector Type	Gender	Color	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Current Rating (Amps)	Number of Positions	Size	Material Flammability Rating	Termination Style
HARTING 09100043101	Insert without Contacts	Female	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043001	Insert without Contacts	Male	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043100
HARTING 09100043106	Insert without Contacts	Female	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043105
HARTING 09100043005
HARTING 09100043006	Insert without Contacts	Male	Black	-30 ░C	90 °C	Polyamide (PA), Nylon	4 A	4+Shield	1 A	UL94 V-0	Crimp
HARTING 09100043000
