M80-6130845

Active

Harwin Inc.

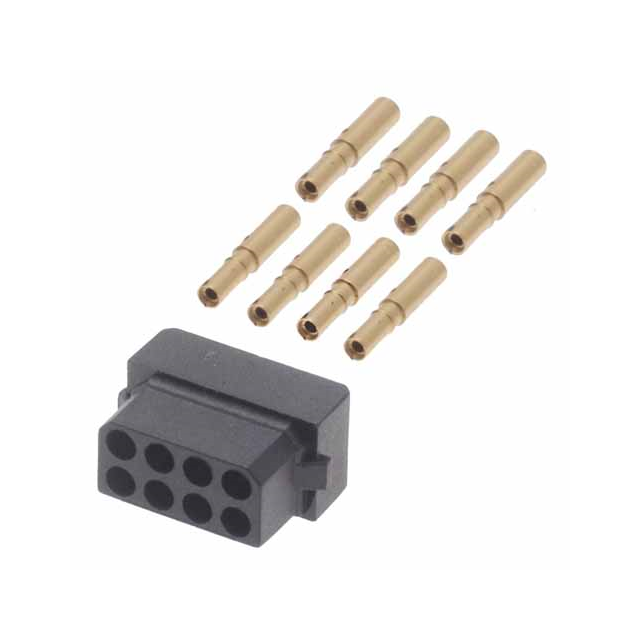

4+4 POS. FEMALE DIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

4+4 POS. FEMALE DIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Fastening Type	Wire Gauge	Number of Rows	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Contact Finish	Cable Termination	Number of Positions	Row Spacing	Row Spacing
Harwin Inc. M80-6130845	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	8	2 mm	0.079 in
Harwin Inc. M80-6131045	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	10	2 mm	0.079 in
Harwin Inc. M80-6130645	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	6	2 mm	0.079 in
Harwin Inc. M80-6131242	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	12	2 mm	0.079 in
Harwin Inc. M80-6132645	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	26	2 mm	0.079 in
Harwin Inc. M80-6131445	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	14	2 mm	0.079 in
Harwin Inc. M80-6132042	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	20	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
