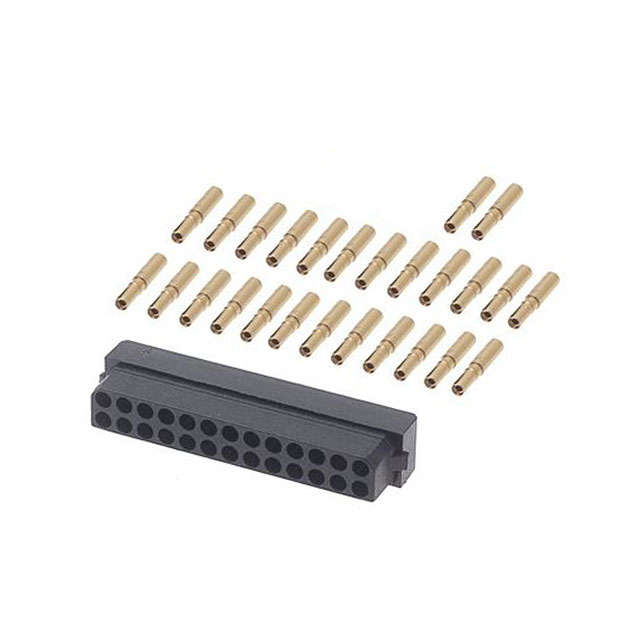

M80-6132645

Active

Harwin Inc.

13+13 POS. FEMALE DIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

13+13 POS. FEMALE DIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Fastening Type	Wire Gauge	Number of Rows	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Contact Finish	Cable Termination	Number of Positions	Row Spacing	Row Spacing
Harwin Inc. M80-6130845	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	8	2 mm	0.079 in
Harwin Inc. M80-6131045	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	10	2 mm	0.079 in
Harwin Inc. M80-6130645	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	6	2 mm	0.079 in
Harwin Inc. M80-6131242	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	12	2 mm	0.079 in
Harwin Inc. M80-6132645	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	26	2 mm	0.079 in
Harwin Inc. M80-6131445	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	14	2 mm	0.079 in
Harwin Inc. M80-6132042	Discrete	Locking Ramp	22 AWG	2	Receptacle	Black	0.3 Ám	11.8 Áin	0.079 in	2 mm	Female Socket	Free Hanging (In-Line)	Gold	Crimp	20	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
