08S121 Series

Part	Center Contact Material	Insertion Loss	Dielectric Material	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Adapter Type	Adapter Series	Convert From (Adapter End) Plug Size	Convert From (Adapter End) Type	Fastening Type	Style	Impedance	Mounting Type	Conversion Type	Center Contact Plating	Convert To (Adapter End) Precision	Convert To (Adapter End)	Center Gender	Frequency - Max	Jack Type	Jack Size	Accessory Type	Type	For Use With/Related Products	Specifications	Voltage Rating	Connector Type	Connector Plug Diameter	Number of Ports	Contact Termination	Shield Termination	Housing Color
Rosenberger 08S121-S00S3	Beryllium Copper	0.42 dB	Polyetheretherketone (PEEK)	Stainless Steel	-40 °C	85 °C	500 cycles	Plug to Plug	RPC-1.85 to RPC-1.85	1.85 mm	Male Pin	Threaded	Straight	50 Ohm	Free Hanging (In-Line)	Same Series	Gold	1.85 mm	Male Pin Plug	Male	70 GHz
Rosenberger 08S121-K20S3																						Plug	1.85	Calibration Adapter	Specialized	Network Analyzer
Rosenberger 08S121-S20S3																						Plug	1.85	Calibration Adapter	Specialized	Network Analyzer	1.85 Plug Plug

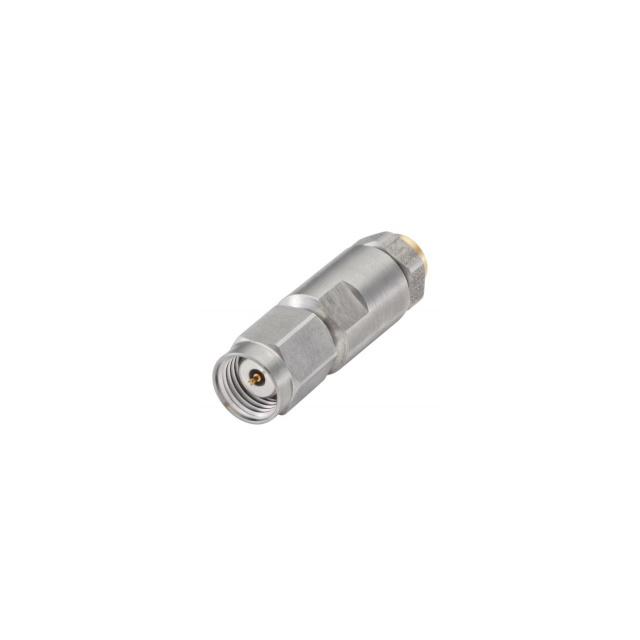

Rosenberger 08S121-270S3	Beryllium Copper		Polyetheretherketone (PEEK)	Stainless Steel	-40 °C	85 °C	500 cycles					Threaded		50 Ohm	Free Hanging (In-Line)		Gold				70 GHz							150 VDC	Male Pin Plug	1.85 mm	1	Solder	Solder
Rosenberger 08S121-271S3	Beryllium Copper		Polyetheretherketone (PEEK)	Stainless Steel	-40 °C	85 °C	500 cycles					Threaded		50 Ohm	Free Hanging (In-Line)		Gold				65 GHz							150 VDC	Male Pin Plug	1.85 mm	1	Solder	Solder	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
