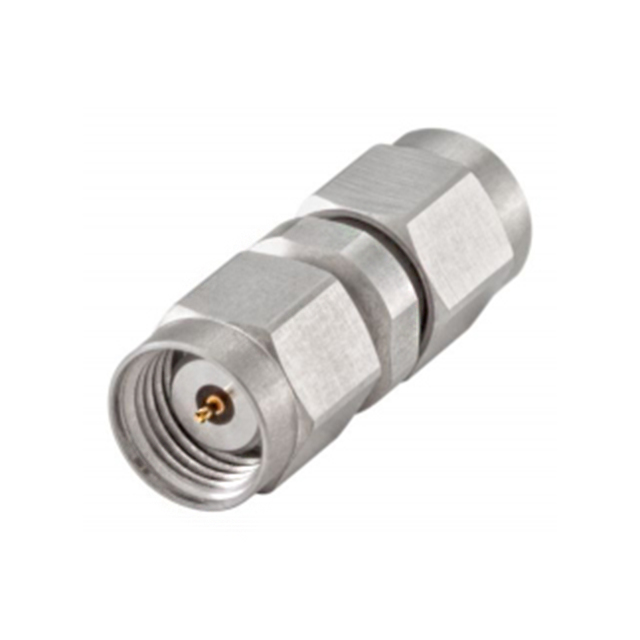

08S121-S20S3
ActiveRosenberger
PRECISION 1.85 CALIBRATION ADAPT
Deep-Dive with AI
Search across all available documentation for this part.
08S121-S20S3
ActiveRosenberger
PRECISION 1.85 CALIBRATION ADAPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08S121-S20S3 |
|---|---|
| Accessory Type | Calibration Adapter |
| For Use With/Related Products | Network Analyzer |
| Specifications | Plug |
| Specifications | 1.85 Plug |
| Type | Specialized |
08S121 Series
| Part | Conversion Type | Center Contact Plating | Mounting Type | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Gender | Convert To (Adapter End) | Dielectric Material | Insertion Loss | Convert From (Adapter End) | Convert From (Adapter End) | Style | Adapter Series | Impedance | Adapter Type | Frequency - Max [Max] | Center Contact Material | Body Material | Type | Accessory Type | Specifications | For Use With/Related Products | Specifications | Contact Termination | Voltage Rating | Connector Type | Number of Ports | Shield Termination | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | Same Series | Gold | Free Hanging (In-Line) | 500 | 85 °C | -40 °C | Male to Male | 1.85mm Plug Male Pin | Polyetheretherketone (PEEK) | 0.42 dB | 1.85 mm | Plug Male Pin | Straight | RPC-1.85 to RPC-1.85 | 50 Ohms | Plug to Plug | 70 GHz | Beryllium Copper | Stainless Steel | ||||||||||||
Rosenberger | Specialized | Calibration Adapter | 1.85 Jack Plug | Network Analyzer | |||||||||||||||||||||||||||
Rosenberger | Specialized | Calibration Adapter | Plug | Network Analyzer | 1.85 Plug | ||||||||||||||||||||||||||
Rosenberger | Gold | Free Hanging (In-Line) | 500 | 85 °C | -40 °C | Polyetheretherketone (PEEK) | 50 Ohms | 70 GHz | Beryllium Copper | Stainless Steel | Solder | 150 VDC | Male Pin Plug | 1 | Solder | 1.85 mm | |||||||||||||||
Rosenberger | Gold | Free Hanging (In-Line) | 500 | 85 °C | -40 °C | Polyetheretherketone (PEEK) | 50 Ohms | 65 GHz | Beryllium Copper | Stainless Steel | Solder | 150 VDC | Male Pin Plug | 1 | Solder | 1.85 mm | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2188.15 | |
Description
General part information
08S121 Series
Specialized Calibration Adapter for use with Network Analyzer
Documents
Technical documentation and resources
No documents available
