IPL65R1K5C6SATMA1

Obsolete

Infineon Technologies

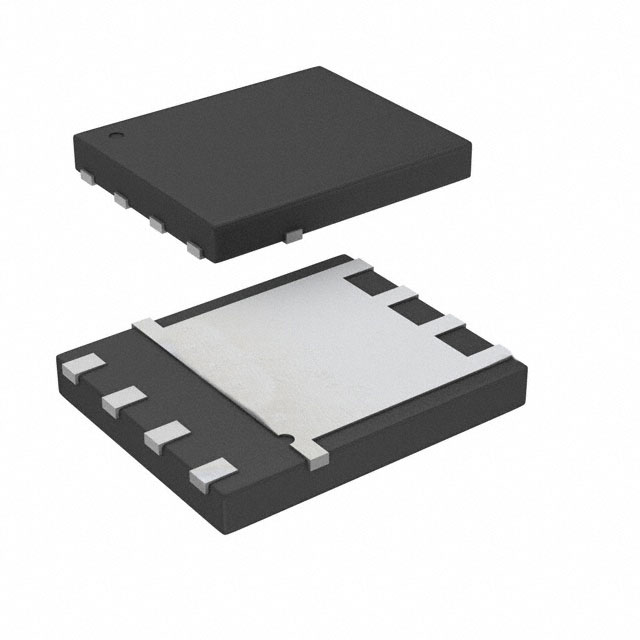

COOLMOS™ C6 N-CHANNEL SUPERJUNCTION MOSFET 650 V ; THINPAK 5X6 PACKAGE; 1500 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPL65R1K5C6SATMA1

Obsolete

Infineon Technologies

COOLMOS™ C6 N-CHANNEL SUPERJUNCTION MOSFET 650 V ; THINPAK 5X6 PACKAGE; 1500 MOHM;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL65R1K5C6SATMA1

Current - Continuous Drain (Id) @ 25°C	3 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	11 nC
Input Capacitance (Ciss) (Max) @ Vds	225 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max) [Max]	26.6 W
Rds On (Max) @ Id, Vgs	1.5 Ohm
Supplier Device Package	PG-TSON-8-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.5 V

IPL65R1 Series

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Mounting Type	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Technology	Vgs (Max)	Power Dissipation (Max) [Max]	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs [Max]
Infineon Technologies IPL65R1K0C6SATMA1	8-PowerTDFN	150 °C	-40 °C	4.2 A	1 Ohm	3.5 V	650 V	Surface Mount	PG-TSON-8-2	328 pF	MOSFET (Metal Oxide)	20 V	34.7 W	N-Channel	10 V
Infineon Technologies IPL65R1K5C6SATMA1	8-PowerTDFN	150 °C	-40 °C	3 A	1.5 Ohm	3.5 V	650 V	Surface Mount	PG-TSON-8-2	225 pF	MOSFET (Metal Oxide)	20 V	26.6 W	N-Channel	10 V	11 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IPL65R1 Series

The new CoolMOS™ ThinPAK 5x6 is a leadless SMD package especially designed for high voltage MOSFETs. This new package has a very small footprint of 5x6mm2and a very low profile with only 1mm height. This significantly smaller package size in combination with its benchmark low parasitics inductances can be used as a new and effective way to decrease system solution size in power- density driven designs. The ThinPAK 5x6 package is characterized by a very low source inductance 1.6nH, as well as a similar thermal performance as DPAK. The package hence enables faster and thus more efficient switching of power MOSFETs and is easier to handle in terms of switching behavior and EMI.
