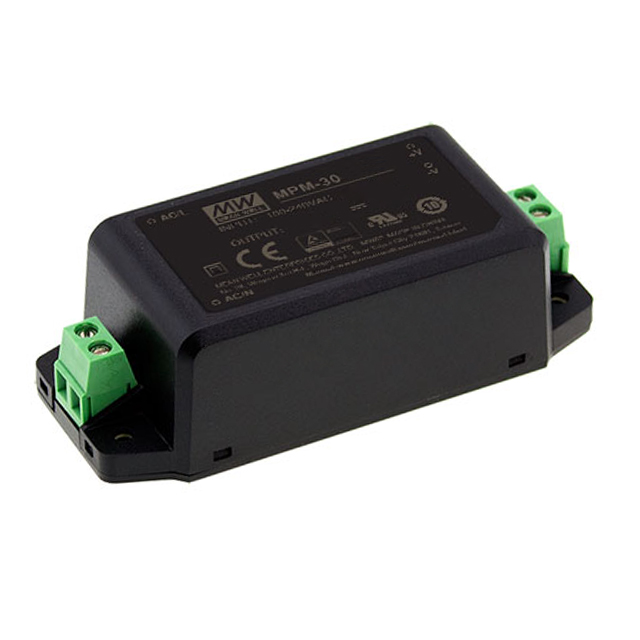

Specification	MPM-30-12ST

Applications	Household Appliances, Medical
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	2.5 A
Efficiency	90 %
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	30 W
Size / Dimension Height	1.12 in
Size / Dimension Length	3.58 in
Size / Dimension Width	1.55 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

MPM-30 Series

Part	Load Regulation (Percent)	Line Regulation	Current - Output (Max)	Features	Package / Case	Applications	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Approval Agency	Mounting Type	Number of Outputs	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Power (Watts)	Voltage - Output 1	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Type	Minimum Load Required	Voltage - Isolation	Current - Output 1
MEAN WELL USA Inc. MPM-30-48	0.5 %	0.5 %	630 mA	Universal Input	5-DIP Module	Medical	80 V	264 V	CB CE cURus TUV	Through Hole	1	2.74 in	0.94 in	1.54 in	30 W	48 V	91 %	85 °C	-40 °C	Enclosed
MEAN WELL USA Inc. MPM-30-48ST						Household Appliances Medical	80 V	264 V	CB CE cURus TUV	Chassis Mount	1	3.58 in	1.12 in	1.55 in	30 W	48 V	91 %	85 °C	-40 °C	Enclosed	No	4000 Vpk	630 mA
MEAN WELL USA Inc. MPM-30-3.3	1 %	0.5 %	6 A	Universal Input	5-DIP Module	Medical	80 V	264 V	CB CE cURus TUV	Through Hole	1	2.74 in	0.94 in	1.54 in	20 W	3.3 V	82.5 %	85 °C	-40 °C	Enclosed
MEAN WELL USA Inc. MPM-30-12ST						Household Appliances Medical	80 V	264 V	CB CE cURus TUV	Chassis Mount	1	3.58 in	1.12 in	1.55 in	30 W	12 V	90 %	85 °C	-40 °C	Enclosed	No	4000 Vpk	2.5 A
MEAN WELL USA Inc. MPM-30-15	0.5 %	0.5 %	2 A	Universal Input	5-DIP Module	Medical	80 V	264 V	CB CE cURus TUV	Through Hole	1	2.74 in	0.94 in	1.54 in	30 W	15 V	89 %	85 °C	-40 °C	Enclosed
MEAN WELL USA Inc. MPM-30-5	1 %	0.5 %	6 A	Universal Input	5-DIP Module	Medical	80 V	264 V	CB CE cURus TUV	Through Hole	1	2.74 in	0.94 in	1.54 in	30 W	5 V	86.5 %	85 °C	-40 °C	Enclosed
MEAN WELL USA Inc. MPM-30-5ST						Household Appliances Medical	80 V	264 V	CB CE cURus TUV	Chassis Mount	1	3.58 in	1.12 in	1.55 in	30 W	5 V	86.5 %	85 °C	-40 °C	Enclosed	No	4000 Vpk	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MPM-30-12ST | Datasheet
