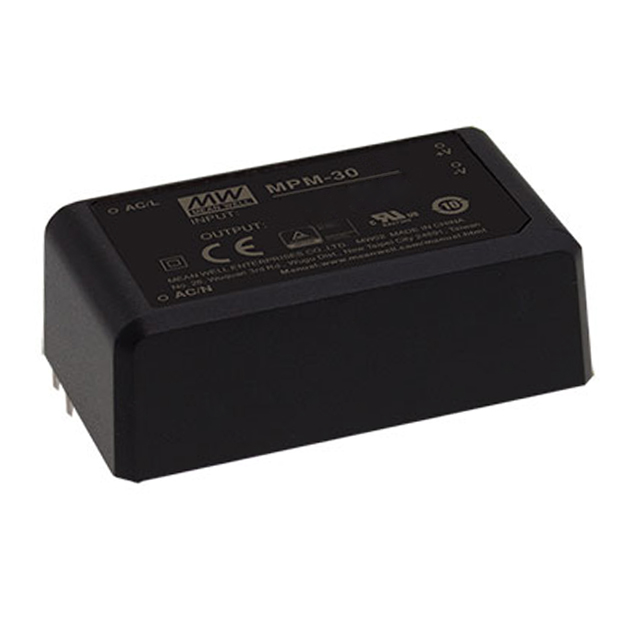

MPM-30-48

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 30W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current - Output (Max) [Max]	Efficiency	Features	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Line Regulation	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Applications	Number of Outputs	Load Regulation	Package / Case	Voltage - Output 1	Voltage - Isolation	Current - Output 1
MEAN WELL USA Inc. MPM-30-48	Through Hole	630 mA	91 %	Universal Input	264 VAC	80 VAC	30 W	0.5 %	CB CE cURus TUV	85 °C	-40 °C	39 mm	2.74 "	0.94 in	69.5 mm	24 mm	1.54 "	Enclosed	Medical	1	0.5 %	5-DIP Module	48 V
MEAN WELL USA Inc. MPM-30-3.3	Through Hole	6 A	82.5 %	Universal Input	264 VAC	80 VAC	20 W	0.5 %	CB CE cURus TUV	85 °C	-40 °C	39 mm	2.74 "	0.94 in	69.5 mm	24 mm	1.54 "	Enclosed	Medical	1	1 %	5-DIP Module	3.3 V
MEAN WELL USA Inc. MPM-30-12ST	Chassis Mount		90 %		264 VAC	80 VAC	30 W		CB CE cURus TUV	85 °C	-40 °C	39.4 mm	3.58 in	1.12 in	90.9 mm	28.4 mm	1.55 "	Enclosed	Household Appliances Medical	1			12 V	4000 V	2.5 A
MEAN WELL USA Inc. MPM-30-15	Through Hole	2 A	89 %	Universal Input	264 VAC	80 VAC	30 W	0.5 %	CB CE cURus TUV	85 °C	-40 °C	39 mm	2.74 "	0.94 in	69.5 mm	24 mm	1.54 "	Enclosed	Medical	1	0.5 %	5-DIP Module	15 V
MEAN WELL USA Inc. MPM-30-5ST	Chassis Mount		86.5 %		264 VAC	80 VAC	30 W		CB CE cURus TUV	85 °C	-40 °C	39.4 mm	3.58 in	1.12 in	90.9 mm	28.4 mm	1.55 "	Enclosed	Household Appliances Medical	1			5 V	4000 V	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 630mA 80 ~ 264 VAC Input
