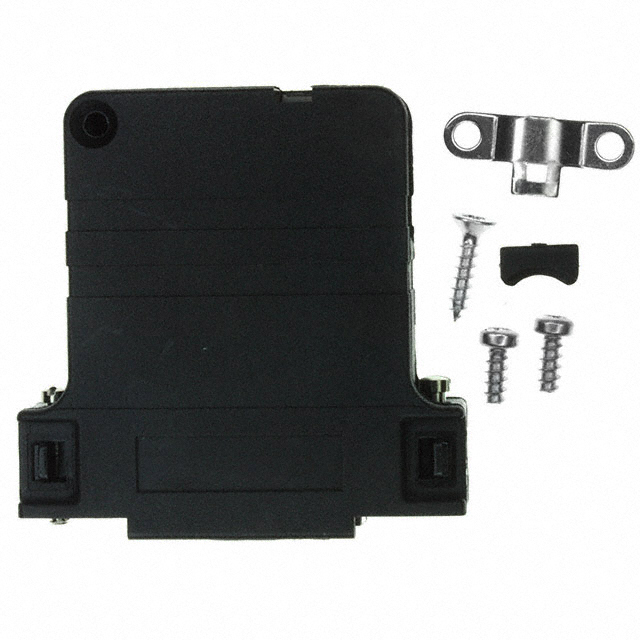

165X13439XE

Active

Amphenol CONEC

CONN BACKSHELL 25POS 90DEG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X13439XE

Active

Amphenol CONEC

CONN BACKSHELL 25POS 90DEG BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X13439XE

Accessory Type	Two Piece Backshell
Cable Exit	90 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Polybutylene Terephthalate (PBT)
Primary Material	Plastic
Shielding	Unshielded

165X134 Series

Part	Material	Color	Accessory Type	Primary Material	Compatible Shell Size	Features	Cable Exit	Cable Type	Shielding	Compatible D-Sub Size	Hardware	Number of Positions
Amphenol CONEC 165X13489XE	Metallized Plastic	Silver	Two Piece Backshell	Plastic	B	Mating Screws 4-40	180 °	Round	Shielded	25pos HD44pos
Amphenol CONEC 165X13449XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	C	Mating Screws 4-40	90 °	Round	Unshielded	37pos HD62pos	Assembly Hardware Strain Relief	37
Amphenol CONEC 165X13419XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	E	Mating Screws 4-40	90 °	Round	Unshielded	9pos HD15pos	Assembly Hardware Strain Relief	9
Amphenol CONEC 165X13459XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	D	Mating Screws 4-40	90 °	Round	Unshielded	50pos HD78pos	Assembly Hardware Strain Relief	50
Amphenol CONEC 165X13439XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	B	Mating Screws 4-40	90 °	Round	Unshielded	25pos HD44pos	Assembly Hardware Strain Relief
Amphenol CONEC 165X13469X	Metallized Plastic		Two Piece Backshell	Plastic	E	Mating Screws 4-40	180 °	Round	Shielded	9pos HD15pos	Assembly Hardware Strain Relief	9
Amphenol CONEC 165X13429X	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	A	IP20 Mating Screws 4-40	45 °	Round	Unshielded	15pos HD26pos		15
Amphenol CONEC 165X13479XE	Metallized Plastic	Silver	Two Piece Backshell	Plastic	A	Mating Screws 4-40	180 °	Round	Shielded	15pos HD26pos		15
Amphenol CONEC 165X13409XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	D	Mating Screws 4-40	180 °	Round	Unshielded	50pos HD78pos	Assembly Hardware Strain Relief	50
Amphenol CONEC 165X13439X	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	B	IP20 Mating Screws 4-40	45 °	Round	Unshielded	25pos HD44pos

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.59
		50	$ 8.75
		100	$ 8.52
		1000	$ 6.31

Description

General part information

165X134 Series

25 Position Two Piece Backshell Connector Black 90° Unshielded
