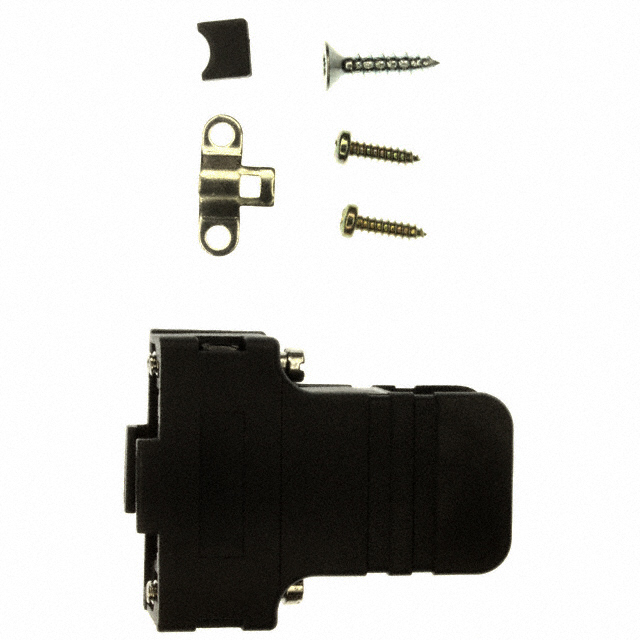

165X13419XE

Active

Amphenol CONEC

CONN BACKSHELL 9POS 90DEG BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X13419XE

Active

Amphenol CONEC

CONN BACKSHELL 9POS 90DEG BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X13419XE

Accessory Type	Two Piece Backshell
Cable Exit	90 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Polybutylene Terephthalate (PBT)
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

165X134 Series

Part	Material	Color	Accessory Type	Primary Material	Compatible Shell Size	Features	Cable Exit	Cable Type	Shielding	Compatible D-Sub Size	Hardware	Number of Positions
Amphenol CONEC 165X13489XE	Metallized Plastic	Silver	Two Piece Backshell	Plastic	B	Mating Screws 4-40	180 °	Round	Shielded	25pos HD44pos
Amphenol CONEC 165X13449XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	C	Mating Screws 4-40	90 °	Round	Unshielded	37pos HD62pos	Assembly Hardware Strain Relief	37
Amphenol CONEC 165X13419XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	E	Mating Screws 4-40	90 °	Round	Unshielded	9pos HD15pos	Assembly Hardware Strain Relief	9
Amphenol CONEC 165X13459XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	D	Mating Screws 4-40	90 °	Round	Unshielded	50pos HD78pos	Assembly Hardware Strain Relief	50
Amphenol CONEC 165X13439XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	B	Mating Screws 4-40	90 °	Round	Unshielded	25pos HD44pos	Assembly Hardware Strain Relief
Amphenol CONEC 165X13469X	Metallized Plastic		Two Piece Backshell	Plastic	E	Mating Screws 4-40	180 °	Round	Shielded	9pos HD15pos	Assembly Hardware Strain Relief	9
Amphenol CONEC 165X13429X	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	A	IP20 Mating Screws 4-40	45 °	Round	Unshielded	15pos HD26pos		15
Amphenol CONEC 165X13479XE	Metallized Plastic	Silver	Two Piece Backshell	Plastic	A	Mating Screws 4-40	180 °	Round	Shielded	15pos HD26pos		15
Amphenol CONEC 165X13409XE	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	D	Mating Screws 4-40	180 °	Round	Unshielded	50pos HD78pos	Assembly Hardware Strain Relief	50
Amphenol CONEC 165X13439X	Polybutylene Terephthalate (PBT)	Black	Two Piece Backshell	Plastic	B	IP20 Mating Screws 4-40	45 °	Round	Unshielded	25pos HD44pos

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.73
		10	$ 8.24
		25	$ 7.44
		50	$ 6.90
		100	$ 6.41
		250	$ 5.84
		500	$ 5.45
		1000	$ 5.10

Description

General part information

165X134 Series

9 Position Two Piece Backshell Connector Black 90° Unshielded

Documents

Technical documentation and resources
