307-022-559-112

Active

EDAC Inc.

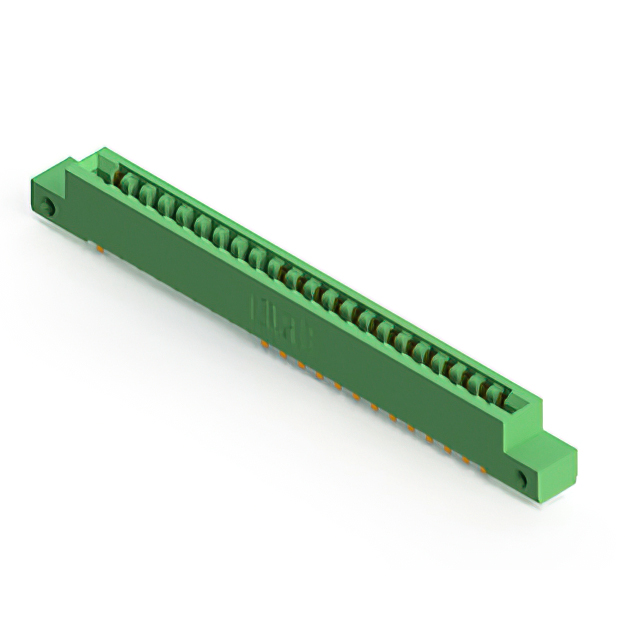

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-022-559-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-022-559-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-022 Series

...

Part	Number of Positions	Number of Rows	Read Out	Termination	Contact Type	Material - Insulation	Card Type	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Termination Rows	Contact Material	Mounting Type	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 307-022-559-203	22 positions	2	Dual	Solder	Semi Bellows	Polyester Thermoplastic	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	2	Copper Alloy	Through Hole Right Angle	11
EDAC Inc. 307-022-559-112	22 positions	1	Single	Solder	Semi Bellows	Polyester Thermoplastic	Non Specified - Single Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Gold	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole Right Angle	22
EDAC Inc. 307-022-557-108	44	2	Dual	Wire Wrap	Semi Bellows	Polyester Thermoplastic	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green		4-40 Flush Mount Threaded Insert Top Opening		Gold	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole Right Angle	22
EDAC Inc. 307-022-545-108	22 positions	1	Single	Wire Wrap	Semi Bellows	Polyester Thermoplastic	Non Specified - Single Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green		4-40 Flush Mount Threaded Insert Top Opening		Gold	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole	22
EDAC Inc. 307-022-441-104	44	2	Dual	Wire Wrap	Semi Bellows	Polyester Thermoplastic	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in			Green	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Tin	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole	22
EDAC Inc. 307-022-558-108	22 positions	1	Single	Solder	Semi Bellows	Polyester Thermoplastic	Non Specified - Single Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green		4-40 Flush Mount Threaded Insert Top Opening		Gold	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole Right Angle	22
EDAC Inc. 307-022-401-101	44	2	Dual	Solder Eyelet(s)	Semi Bellows	Polyester Thermoplastic	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in			Green				Tin	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole	22
EDAC Inc. 307-022-522-268	22 positions	2	Dual	Solder	Semi Bellows	Polyester Thermoplastic	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green		4-40 Flush Mount Threaded Insert Top Opening		Gold	-40 °C	105 ░C	0.156 in	3.96 mm	2	Copper Alloy	Through Hole	11	Card Guides
EDAC Inc. 307-022-521-107	44	2	Dual	Solder	Semi Bellows	Polyester Thermoplastic	Non Specified - Dual Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green		Flush Mount M3 Threaded Insert Top Opening		Gold	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole	22
EDAC Inc. 307-022-545-168	22 positions	1	Single	Wire Wrap	Semi Bellows	Polyester Thermoplastic	Non Specified - Single Edge	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Green		4-40 Flush Mount Threaded Insert Top Opening		Gold	-40 °C	105 ░C	0.156 in	3.96 mm	1	Copper Alloy	Through Hole	22	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.22
Newark	Each	1	$ 17.29
		100	$ 10.76
		250	$ 9.52
		500	$ 8.83
		1000	$ 7.28

Description

General part information

307-022 Series

22 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
