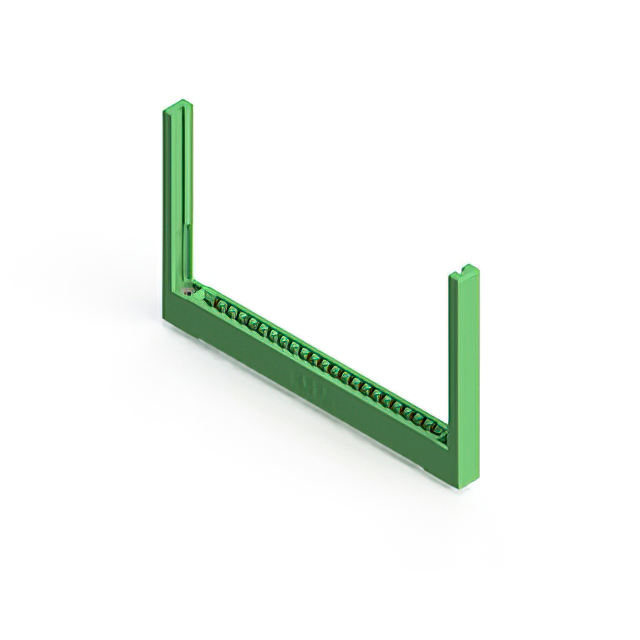

307-022-545-168
ActiveEDAC Inc.
CONN EDGE SGL FMALE 22POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-022-545-168
ActiveEDAC Inc.
CONN EDGE SGL FMALE 22POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-022-545-168 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
307-022 Series
...
| Part | Number of Positions | Number of Rows | Read Out | Termination | Contact Type | Material - Insulation | Card Type | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Termination Rows | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 22 positions | 2 | Dual | Solder | Semi Bellows | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | Copper Alloy | Through Hole Right Angle | 11 | |
EDAC Inc. | 22 positions | 1 | Single | Solder | Semi Bellows | Polyester Thermoplastic | Non Specified - Single Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole Right Angle | 22 | |
EDAC Inc. | 44 | 2 | Dual | Wire Wrap | Semi Bellows | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole Right Angle | 22 | |||
EDAC Inc. | 22 positions | 1 | Single | Wire Wrap | Semi Bellows | Polyester Thermoplastic | Non Specified - Single Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole | 22 | |||
EDAC Inc. | 44 | 2 | Dual | Wire Wrap | Semi Bellows | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Tin | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole | 22 | |||
EDAC Inc. | 22 positions | 1 | Single | Solder | Semi Bellows | Polyester Thermoplastic | Non Specified - Single Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole Right Angle | 22 | |||
EDAC Inc. | 44 | 2 | Dual | Solder Eyelet(s) | Semi Bellows | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Tin | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole | 22 | ||||||
EDAC Inc. | 22 positions | 2 | Dual | Solder | Semi Bellows | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 2 | Copper Alloy | Through Hole | 11 | Card Guides | ||
EDAC Inc. | 44 | 2 | Dual | Solder | Semi Bellows | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Flush Mount M3 Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole | 22 | |||
EDAC Inc. | 22 positions | 1 | Single | Wire Wrap | Semi Bellows | Polyester Thermoplastic | Non Specified - Single Edge | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | 0.156 in | 3.96 mm | 1 | Copper Alloy | Through Hole | 22 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.63 | |
Description
General part information
307-022 Series
22 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
