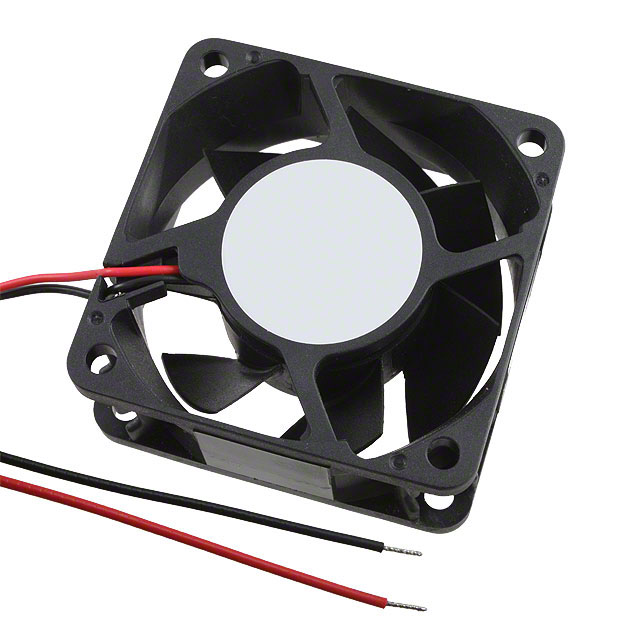

AFB0648SH-A

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 20V TO 56V 34.15CFM 44.5DB 60 X 60 X 25.4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

AFB0648SH-A

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 20V TO 56V 34.15CFM 44.5DB 60 X 60 X 25.4MM

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.42
		10	$ 20.45
		25	$ 18.50
		50	$ 17.04
		180	$ 15.29
		360	$ 14.12
		540	$ 13.14

Description

General part information

AFB0648 Series

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 34.2 CFM (0.958m³/min) 2 Wire Leads

Specification	AFB0648SH-A	AFB0648 Series

Air Flow	34.2 CFM	27.5 - 38.4 CFM
Air Flow	0.958 m³/min	0.77 - 1.08 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	110 mA	0.09 - 140 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	44.5 dB	40 - 46.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	5.28 W	3.84 - 6.72 W
RPM	6000 RPM	5000 - 6800 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.422 in H2O	0.294 - 0.544 in H2O
Static Pressure	105.1 Pa	73.2 - 135.5 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	56 VDC	56 - 60 VDC
Voltage Range [Min]	20 VDC	20 - 36 VDC
Weight	80 g	80 g
Weight	0.176 lb	0.176 lb
Width [y]	25.4 mm	25.4 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Bearing Type	Material - Frame	Termination	Voltage - Rated [custom]	RPM	Air Flow	Air Flow	Lifetime @ Temp.	Width [y]	Features	Fan Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Noise	Approval Agency
Delta Electronics AFB0648EH-ABF00	20 VDC	56 VDC	0.544 in H2O	135.5 Pa	Ball	Plastic	3 Wire Leads	48 VDC	6800 RPM	1.08 m³/min	38.4 CFM	70000 Hrs	25.4 mm	Locked Rotor Protection, Speed Sensor (Tach)	Tubeaxial	140 mA	60 mm	60 mm	80 g	0.176 lb	6.72 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	46.5 dB
Delta Electronics AFB0648HH-A	28 V	56 VDC	0.294 in H2O	73.2 Pa	Ball	Plastic	2 Wire Leads	48 VDC	5000 RPM	0.77 m³/min	27.5 CFM	70000 Hrs	25.4 mm		Tubeaxial		60 mm	60 mm	80 g	0.176 lb	3.84 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	40 dB(A)	CE, CSA, UL, VDE
Delta Electronics AFB0648EH-TP27	36 VDC	60 V	0.544 in H2O	135.5 Pa	Ball	Plastic	4 Wire Leads	48 VDC	6800 RPM	1.08 m³/min	38.4 CFM	70000 Hrs	25.4 mm	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial	140 mA	60 mm	60 mm	80 g	0.176 lb	6.72 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	46.5 dB	CE, CSA, UL, VDE
Delta Electronics AFB0648VH-AF00	28 V	56 VDC	0.345 in H2O	85.9 Pa	Ball	Plastic	3 Wire Leads	48 VDC	5500 RPM	0.854 m³/min	30.5 CFM	70000 Hrs	25.4 mm	Locked Rotor Protection, Speed Sensor (Tach)	Tubeaxial	0.09 A	60 mm	60 mm	80 g	0.176 lb	4.32 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	42.5 dB(A)	CE, CSA, UL, VDE
Delta Electronics AFB0648VH-A	28 V	56 VDC	0.345 in H2O	85.9 Pa	Ball	Plastic	2 Wire Leads	48 VDC	5500 RPM	0.854 m³/min	30.5 CFM	70000 Hrs	25.4 mm		Tubeaxial	0.09 A	60 mm	60 mm	80 g	0.176 lb	4.32 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	42.5 dB(A)	CE, CSA, UL, VDE
Delta Electronics AFB0648SH-A	20 VDC	56 VDC	0.422 in H2O	105.1 Pa	Ball	Plastic	2 Wire Leads	48 VDC	6000 RPM	0.958 m³/min	34.2 CFM	70000 Hrs	25.4 mm		Tubeaxial	110 mA	60 mm	60 mm	80 g	0.176 lb	5.28 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	44.5 dB	CE, CSA, UL, VDE
