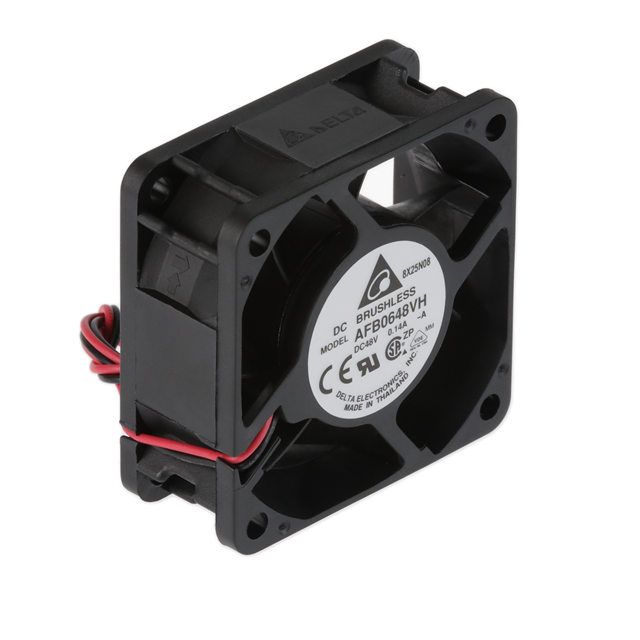

AFB0648VH-A

Active

Delta Electronics

FAN AXIAL 60X25.4MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0648VH-A

Active

Delta Electronics

FAN AXIAL 60X25.4MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	180	$ 15.29

Description

General part information

AFB0648 Series

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 30.5 CFM (0.854m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0648VH-A	AFB0648 Series

Air Flow	30.5 CFM	27.5 - 38.4 CFM
Air Flow	0.854 m³/min	0.77 - 1.08 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.09 A	0.09 - 140 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	42.5 dB(A)	40 - 46.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	4.32 W	3.84 - 6.72 W
RPM	5500 RPM	5000 - 6800 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	85.9 Pa	73.2 - 135.5 Pa
Static Pressure	0.345 in H2O	0.294 - 0.544 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	56 VDC	56 - 60 VDC
Voltage Range [Min]	28 V	20 - 36 VDC
Weight	80 g	80 g
Weight	0.176 lb	0.176 lb
Width [y]	25.4 mm	25.4 mm

AFB0648 Series

FAN AXIAL 60X25.4MM 48VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Bearing Type	Material - Frame	Termination	Voltage - Rated [custom]	RPM	Air Flow	Air Flow	Lifetime @ Temp.	Width [y]	Features	Fan Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Noise	Approval Agency
Delta Electronics AFB0648EH-ABF00	20 VDC	56 VDC	0.544 in H2O	135.5 Pa	Ball	Plastic	3 Wire Leads	48 VDC	6800 RPM	1.08 m³/min	38.4 CFM	70000 Hrs	25.4 mm	Locked Rotor Protection, Speed Sensor (Tach)	Tubeaxial	140 mA	60 mm	60 mm	80 g	0.176 lb	6.72 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	46.5 dB
Delta Electronics AFB0648HH-A	28 V	56 VDC	0.294 in H2O	73.2 Pa	Ball	Plastic	2 Wire Leads	48 VDC	5000 RPM	0.77 m³/min	27.5 CFM	70000 Hrs	25.4 mm		Tubeaxial		60 mm	60 mm	80 g	0.176 lb	3.84 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	40 dB(A)	CE, CSA, UL, VDE
Delta Electronics AFB0648EH-TP27	36 VDC	60 V	0.544 in H2O	135.5 Pa	Ball	Plastic	4 Wire Leads	48 VDC	6800 RPM	1.08 m³/min	38.4 CFM	70000 Hrs	25.4 mm	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Tubeaxial	140 mA	60 mm	60 mm	80 g	0.176 lb	6.72 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	46.5 dB	CE, CSA, UL, VDE
Delta Electronics AFB0648VH-AF00	28 V	56 VDC	0.345 in H2O	85.9 Pa	Ball	Plastic	3 Wire Leads	48 VDC	5500 RPM	0.854 m³/min	30.5 CFM	70000 Hrs	25.4 mm	Locked Rotor Protection, Speed Sensor (Tach)	Tubeaxial	0.09 A	60 mm	60 mm	80 g	0.176 lb	4.32 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	42.5 dB(A)	CE, CSA, UL, VDE
Delta Electronics AFB0648VH-A	28 V	56 VDC	0.345 in H2O	85.9 Pa	Ball	Plastic	2 Wire Leads	48 VDC	5500 RPM	0.854 m³/min	30.5 CFM	70000 Hrs	25.4 mm		Tubeaxial	0.09 A	60 mm	60 mm	80 g	0.176 lb	4.32 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	42.5 dB(A)	CE, CSA, UL, VDE
Delta Electronics AFB0648SH-A	20 VDC	56 VDC	0.422 in H2O	105.1 Pa	Ball	Plastic	2 Wire Leads	48 VDC	6000 RPM	0.958 m³/min	34.2 CFM	70000 Hrs	25.4 mm		Tubeaxial	110 mA	60 mm	60 mm	80 g	0.176 lb	5.28 W	70 °C	70 °C	-10 °C	-10 °C	Plastic	44.5 dB	CE, CSA, UL, VDE
