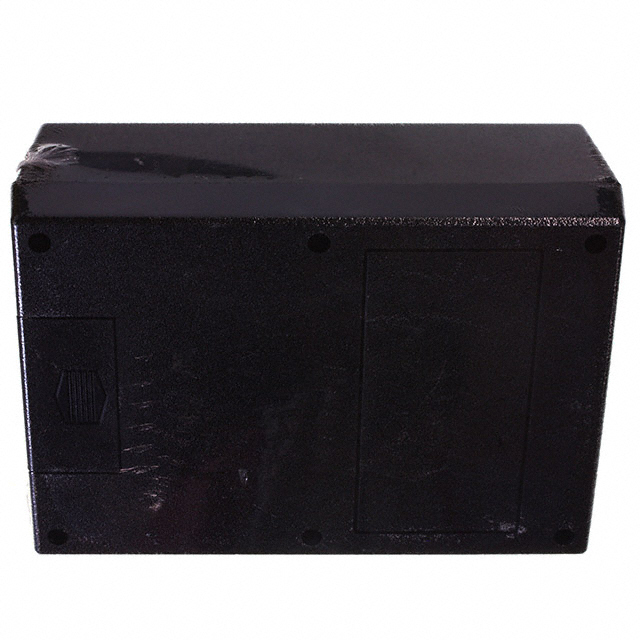

273R,BK

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	273R,BK

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports, Battery Compartment, Front Access, 9V
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	227.7 g
Weight	0.502 lb

Part	Container Type	Thickness	Thickness	Design	Ratings	Area (L x W)	Area (L x W)	Material	Color	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Material Flammability Rating	Weight	Weight
Serpac 273RI,BK	Box	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	33.6 in²	217 cm²	Plastic ABS	Black	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	227.7 g	0.502 lb
Serpac 273RI,GY	Box	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	33.6 in²	217 cm²	Plastic ABS	Gray	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	227.7 g	0.502 lb
Serpac 273R,GY	Box	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	33.6 in²	217 cm²	Plastic ABS	Gray	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	227.7 g	0.502 lb
Serpac 273RI,AL	Box	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	33.6 in²	217 cm²	Plastic ABS	Almond	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	227.7 g	0.502 lb
Serpac 273R,BK	Box	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	33.6 in²	217 cm²	Plastic ABS	Black	63.5 mm	2.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	227.7 g	0.502 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.94

General part information

Box Plastic, ABS Black Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.500" (63.50mm)

Technical documentation and resources

No documents available
