Specification	273R,GY

Area (L x W)	33.6 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, Battery Compartment, 9V, PCB Supports
Height	63.5 mm
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	6.88 in
Size / Dimension Width	4.88 in
Thickness	0.1 in
Weight	0.502 lb

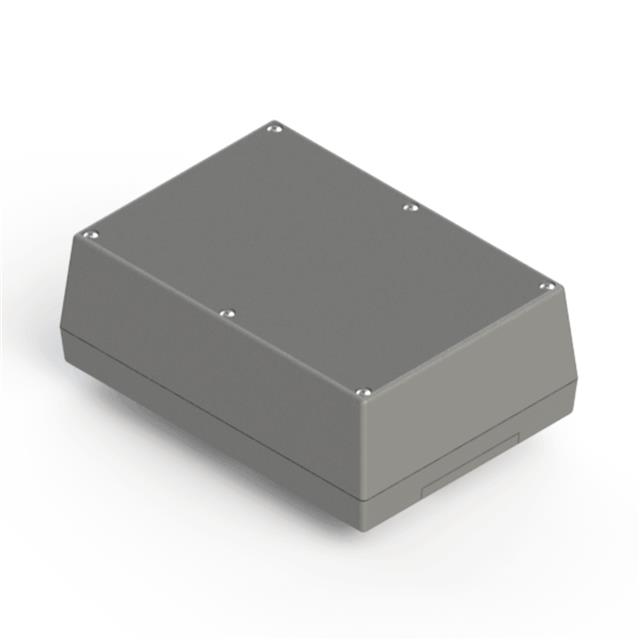

273R Series

Part	Weight	Color	Area (L x W)	Container Type	Material	Size / Dimension Width	Size / Dimension Length	Material Flammability Rating	Design	Features	Height	Ratings	Thickness
Serpac 273RI,BK	0.502 lb	Black	33.6 in²	Box	ABS Plastic	4.88 in	6.88 in	UL94 HB	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	63.5 mm	IP40 NEMA 1	0.1 in
Serpac 273RI,GY	0.502 lb	Gray	33.6 in²	Box	ABS Plastic	4.88 in	6.88 in	UL94 HB	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	63.5 mm	IP40 NEMA 1	0.1 in
Serpac 273R,GY	0.502 lb	Gray	33.6 in²	Box	ABS Plastic	4.88 in	6.88 in	UL94 HB	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	63.5 mm	IP40 NEMA 1	0.1 in
Serpac 273RI,AL	0.502 lb	Almond	33.6 in²	Box	ABS Plastic	4.88 in	6.88 in	UL94 HB	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	63.5 mm	IP40 NEMA 1	0.1 in
Serpac 273R,BK	0.502 lb	Black	33.6 in²	Box	ABS Plastic	4.88 in	6.88 in	UL94 HB	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	63.5 mm	IP40 NEMA 1	0.1 in
Serpac 273R,AL	0.502 lb	Almond	33.6 in²	Box	ABS Plastic	4.88 in	6.88 in	UL94 HB	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	63.5 mm	IP40 NEMA 1	0.1 in
