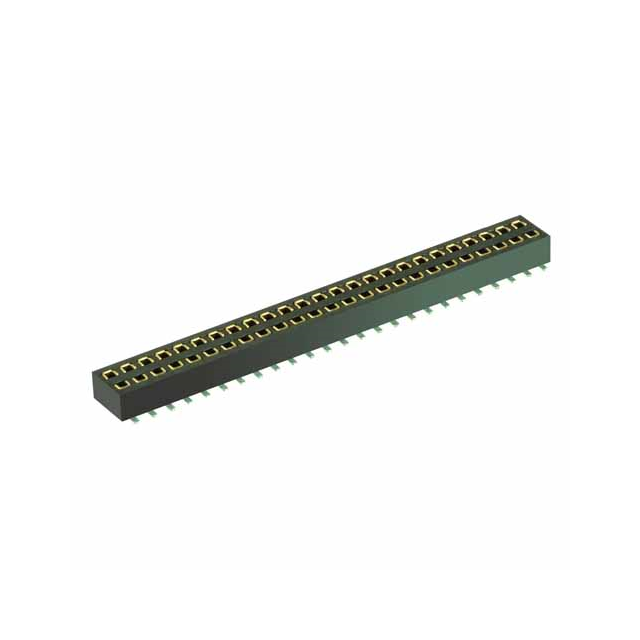

M50-3152542R
ActiveHarwin Inc.
25+25 POS. FEMALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3152542R
ActiveHarwin Inc.
25+25 POS. FEMALE DIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3152542R |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.087 " |
| Insulation Height | 2.2 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 3.2 mm, 4.6 mm, 5.3 mm, 3.9 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
M50-315 Series
| Part | Termination | Style | Contact Finish - Mating | Connector Type | Insulation Color | Contact Shape | Mated Stacking Heights | Contact Type | Number of Positions | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Applications | Contact Material | Contact Finish Thickness - Mating | Features | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Finish - Post | Number of Positions Loaded | Number of Rows | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Solder | Board to Board Cable | Gold | Receptacle Bottom or Top Entry | Black | Square | 3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm | Female Socket | 50 | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | Phosphor Bronze | Flash | Board Guide | UL94 V-0 | Push-Pull | -40 °C | 105 ░C | 0.087 " | 2.2 mm | Tin | All | 2 | Surface Mount | 2.54 µm | 100 µin |
Harwin Inc. | Solder | Board to Board Cable | Gold | Receptacle Bottom or Top Entry | Black | Square | 3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm | Female Socket | 20 | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | Phosphor Bronze | Flash | Board Guide | UL94 V-0 | Push-Pull | -40 °C | 105 ░C | 0.087 " | 2.2 mm | Tin | All | 2 | Surface Mount | 2.54 µm | 100 µin |
Harwin Inc. | Solder | Board to Board Cable | Gold | Receptacle Bottom or Top Entry | Black | Square | 3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm | Female Socket | 100 | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | Phosphor Bronze | Flash | Board Guide | UL94 V-0 | Push-Pull | -40 °C | 105 ░C | 0.087 " | 2.2 mm | Tin | All | 2 | Surface Mount | 2.54 µm | 100 µin |
Harwin Inc. | Solder | Board to Board Cable | Gold | Receptacle Bottom or Top Entry | Black | Square | 3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm | Female Socket | 10 | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | Phosphor Bronze | Flash | Board Guide Pick and Place | UL94 V-0 | Push-Pull | -40 °C | 105 ░C | 0.087 " | 2.2 mm | Tin | All | 2 | Surface Mount | 2.54 µm | 100 µin |
Harwin Inc. | Solder | Board to Board Cable | Gold | Receptacle Bottom or Top Entry | Black | Square | 3.2 mm 3.9 mm 4.6 mm 5.3 mm | Female Socket | 50 | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | Phosphor Bronze | Flash | Board Guide Pick and Place | UL94 V-0 | Push-Pull | -40 °C | 105 ░C | 0.087 " | 2.2 mm | Tin | All | 2 | Surface Mount | 2.54 µm | 100 µin |
Harwin Inc. | Solder | Board to Board Cable | Gold | Receptacle Bottom or Top Entry | Black | Square | 3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm | Female Socket | 10 | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | Phosphor Bronze | Flash | Board Guide | UL94 V-0 | Push-Pull | -40 °C | 105 ░C | 0.087 " | 2.2 mm | Tin | All | 2 | Surface Mount | 2.54 µm | 100 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-315 Series
50 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
