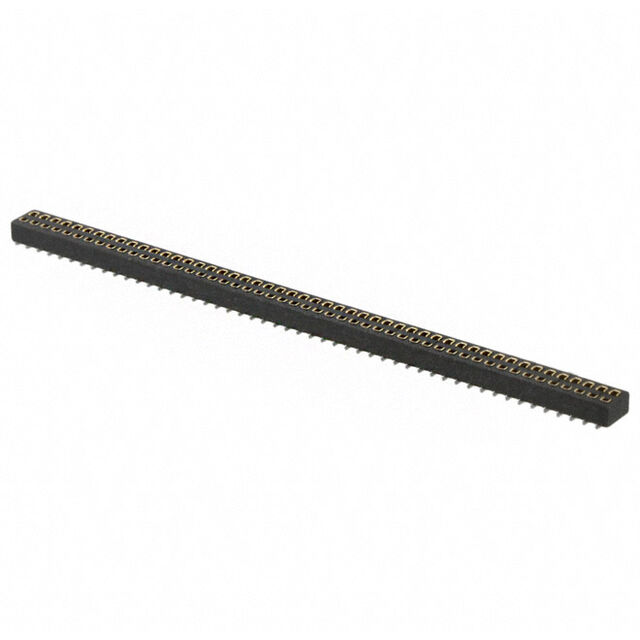

M50-3155042

Obsolete

Harwin Inc.

CONN RCPT 100POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-315xx42 Drawing Datasheet

M50-3155042

Obsolete

Harwin Inc.

CONN RCPT 100POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsM50-315xx42 Drawing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3155042

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	4.6 mm, 3.2 mm, 3.9 mm, 8.6 mm, 7.2 mm, 5.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder

M50-315 Series

Part	Termination	Style	Contact Finish - Mating	Connector Type	Insulation Color	Contact Shape	Mated Stacking Heights	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Applications	Contact Material	Contact Finish Thickness - Mating	Features	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Harwin Inc. M50-3152542	Solder	Board to Board Cable	Gold	Receptacle Bottom or Top Entry	Black	Square	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Female Socket	50	0.05 in	1.27 mm	0.05 in	1.27 mm	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Flash	Board Guide	UL94 V-0	Push-Pull	-40 °C	105 ░C	0.087 "	2.2 mm	Tin	All	2	Surface Mount	2.54 µm	100 µin
Harwin Inc. M50-3151042	Solder	Board to Board Cable	Gold	Receptacle Bottom or Top Entry	Black	Square	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Female Socket	20	0.05 in	1.27 mm	0.05 in	1.27 mm	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Flash	Board Guide	UL94 V-0	Push-Pull	-40 °C	105 ░C	0.087 "	2.2 mm	Tin	All	2	Surface Mount	2.54 µm	100 µin
Harwin Inc. M50-3155042	Solder	Board to Board Cable	Gold	Receptacle Bottom or Top Entry	Black	Square	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Female Socket	100	0.05 in	1.27 mm	0.05 in	1.27 mm	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Flash	Board Guide	UL94 V-0	Push-Pull	-40 °C	105 ░C	0.087 "	2.2 mm	Tin	All	2	Surface Mount	2.54 µm	100 µin
Harwin Inc. M50-3150542R	Solder	Board to Board Cable	Gold	Receptacle Bottom or Top Entry	Black	Square	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Female Socket	10	0.05 in	1.27 mm	0.05 in	1.27 mm	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Flash	Board Guide Pick and Place	UL94 V-0	Push-Pull	-40 °C	105 ░C	0.087 "	2.2 mm	Tin	All	2	Surface Mount	2.54 µm	100 µin
Harwin Inc. M50-3152542R	Solder	Board to Board Cable	Gold	Receptacle Bottom or Top Entry	Black	Square	3.2 mm 3.9 mm 4.6 mm 5.3 mm	Female Socket	50	0.05 in	1.27 mm	0.05 in	1.27 mm	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Flash	Board Guide Pick and Place	UL94 V-0	Push-Pull	-40 °C	105 ░C	0.087 "	2.2 mm	Tin	All	2	Surface Mount	2.54 µm	100 µin
Harwin Inc. M50-3150542	Solder	Board to Board Cable	Gold	Receptacle Bottom or Top Entry	Black	Square	3.2 mm 3.9 mm 4.6 mm 5.3 mm 7.2 mm 8.6 mm	Female Socket	10	0.05 in	1.27 mm	0.05 in	1.27 mm	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Flash	Board Guide	UL94 V-0	Push-Pull	-40 °C	105 ░C	0.087 "	2.2 mm	Tin	All	2	Surface Mount	2.54 µm	100 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M50-315 Series

100 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
