845-040-555-207
ActiveEDAC Inc.

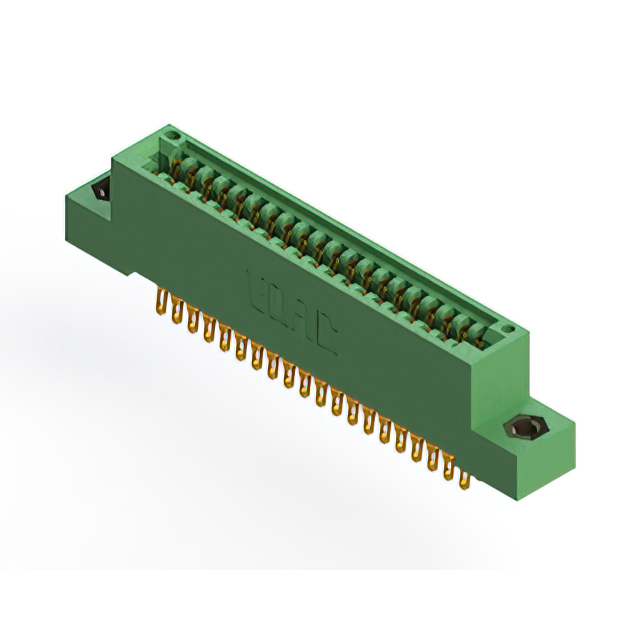

CONN EDGE DUAL FMALE 40POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-040-555-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 40POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-040-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-040 Series
...
| Part | Color | Contact Type | Pitch [x] | Pitch [x] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Rows | Gender | Material - Insulation | Flange Feature | Flange Feature | Mounting Type | Flange Feature | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | Through Hole Right Angle | |||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 1 | 10 Áin | 0.25 Ám | Single | Solder Eyelet(s) | 1 | Female | Diallyl Phthalate (DAP) | Through Hole | M3 Threaded Insert Top Mount Opening | 40 | ||||||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 1 | 10 Áin | 0.25 Ám | Single | Wire Wrap | 1 | Female | Diallyl Phthalate (DAP) | Through Hole | Floating Bobbin Flush Mount | 40 | 0.116 in | 2.95 mm | ||||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | Through Hole Right Angle | Flush Mount M3 Threaded Insert Top Opening | ||||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Flush Mount M3 Threaded Insert Top Opening | Card Extender | |||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 1 | 10 Áin | 0.25 Ám | Single | Solder | 1 | Female | Diallyl Phthalate (DAP) | Through Hole | 4-40 Threaded Insert Top Mount Opening | 40 | ||||||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender | |||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder Eyelet(s) | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | Through Hole | M3 Threaded Insert Top Mount Opening | ||||||
EDAC Inc. | Green | Cantilever | 2.54 mm | 0.1 in | Gold | 125 °C | -40 °C | Non Specified - Dual Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 40 | 2 | 10 Áin | 0.25 Ám | Dual | Solder | 20 | 20 | 20 | 2 | Female | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 86.70 | |
Description
General part information
845-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
