845-040-559-502

Active

EDAC Inc.

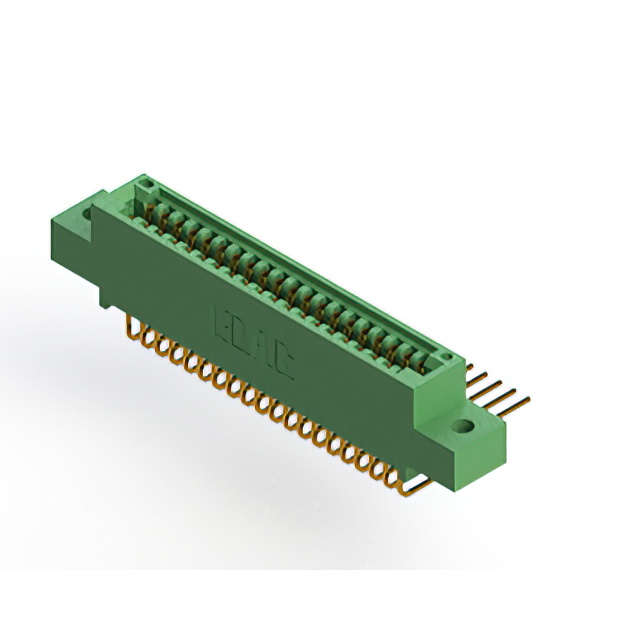

CARD EDGE CONNECTOR, 40 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-040-559-502

Active

EDAC Inc.

CARD EDGE CONNECTOR, 40 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-040-559-502

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-040 Series

...

Part	Color	Contact Type	Pitch [x]	Pitch [x]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Rows	Gender	Material - Insulation	Flange Feature	Flange Feature	Mounting Type	Flange Feature	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 845-040-559-502	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder	20	20	20	2	Female	Diallyl Phthalate (DAP)	3.25 mm	0.128 in	Through Hole Right Angle
EDAC Inc. 845-040-524-207	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder	20	20	20	2	Female	Diallyl Phthalate (DAP)			Through Hole	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-040-500-607	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	1	10 Áin	0.25 Ám	Single	Solder Eyelet(s)				1	Female	Diallyl Phthalate (DAP)			Through Hole	M3 Threaded Insert Top Mount Opening	40
EDAC Inc. 845-040-544-103	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	1	10 Áin	0.25 Ám	Single	Wire Wrap				1	Female	Diallyl Phthalate (DAP)			Through Hole	Floating Bobbin Flush Mount	40	0.116 in	2.95 mm
EDAC Inc. 845-040-559-207	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder	20	20	20	2	Female	Diallyl Phthalate (DAP)			Through Hole Right Angle	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-040-555-207	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder	20	20	20	2	Female	Diallyl Phthalate (DAP)			Board Edge Straddle Mount	Flush Mount M3 Threaded Insert Top Opening				Card Extender
EDAC Inc. 845-040-523-408	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Single Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	1	10 Áin	0.25 Ám	Single	Solder				1	Female	Diallyl Phthalate (DAP)			Through Hole	4-40 Threaded Insert Top Mount Opening	40
EDAC Inc. 845-040-556-202	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder	20	20	20	2	Female	Diallyl Phthalate (DAP)			Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm	Card Extender
EDAC Inc. 845-040-500-807	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder Eyelet(s)	20	20	20	2	Female	Diallyl Phthalate (DAP)			Through Hole	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-040-525-202	Green	Cantilever	2.54 mm	0.1 in	Gold	125 °C	-40 °C	Non Specified - Dual Edge	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	40	2	10 Áin	0.25 Ám	Dual	Solder	20	20	20	2	Female	Diallyl Phthalate (DAP)	3.25 mm	0.128 in	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 71.00
Newark	Each	1	$ 81.95
		100	$ 64.91
		250	$ 58.23
		500	$ 51.82
		1000	$ 41.25

Description

General part information

845-040 Series

40 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
