RT06147PNH

Active

Amphenol Sine Systems Corp

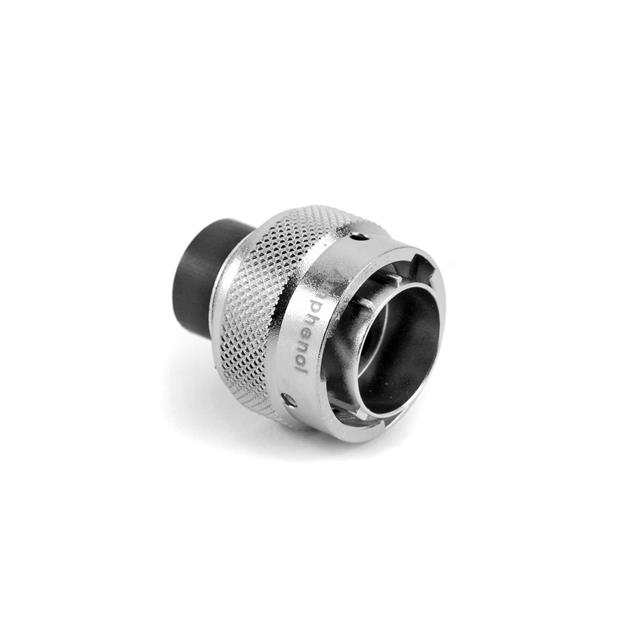

PLUG, 7 POSITION, MALE, SHELL SI

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG, 7 POSITION, MALE, SHELL SI

Technical Specifications

Parameters and characteristics for this part

Specification	RT06147PNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Shielded
Type	For Male Pins

Part	Features	Contact Type	Shielding	Contact Size	Contact Shape	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Finish	Fastening Type	Ingress Protection	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Insert Material	Mounting Type	Type	Shell Material	Note	Orientation	Termination	Current Rating (Amps)	Contact Finish - Mating	Applications	Voltage Rating	Color
Amphenol Sine Systems Corp RT06147PNH	Coupling Nut	Crimp	Shielded	16	Circular	7	14	7	Nickel	Bayonet Lock	IP67 - Dust Tight Waterproof	Silver	-40 °C	105 ░C	Plug Housing	UL94 V-0	Thermoplastic	Free Hanging (In-Line)	For Male Pins	Zinc Alloy	Contacts Not Included	N
Amphenol Sine Systems Corp RT06147SNHECR
Amphenol Sine Systems Corp RT06147SNH03	Coupling Nut	Crimp	Shielded	16	Circular	7	14	7	Nickel	Bayonet Lock	IP67 - Dust Tight Waterproof	Silver	-40 °C	125 °C	Plug Housing	UL94 V-0	Thermoplastic	Free Hanging (In-Line)	For Female Sockets	Zinc Alloy	Contacts Not Included	N
Amphenol Sine Systems Corp RT06147PNHECR
Amphenol Sine Systems Corp RT06147PNH-K	Backshell Coupling Nut		Shielded			7	14	7	Nickel	Bayonet Lock	IP67 - Dust Tight Waterproof		-40 °C	105 ░C	Male Pins Plug	UL94 V-0	Thermoplastic	Free Hanging (In-Line)		Zinc Alloy		N	Crimp	13 A	Gold	Aerospace Automation Industrial Telecom Transportation	500 VAC	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
