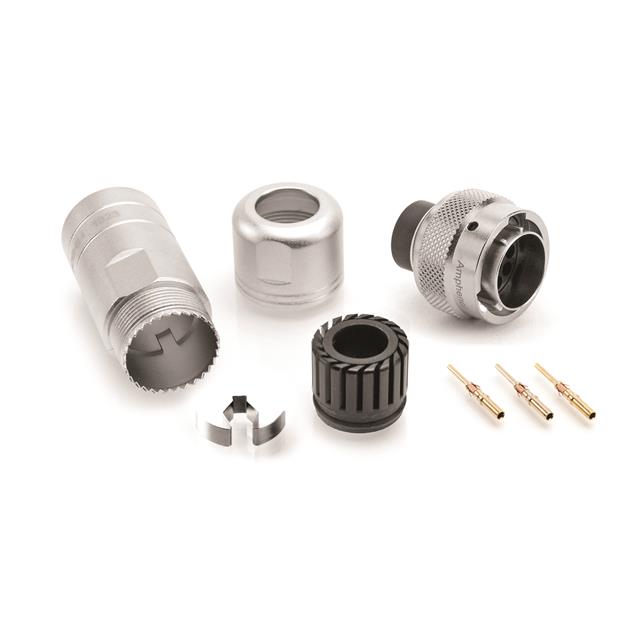

RT06147PNH-K

Active

Amphenol Sine Systems Corp

PLUG KIT, 7 POSITION, MALE, SHEL

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG KIT, 7 POSITION, MALE, SHEL

Technical Specifications

Parameters and characteristics for this part

Specification	RT06147PNH-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

Part	Features	Contact Type	Shielding	Contact Size	Contact Shape	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Finish	Fastening Type	Ingress Protection	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Insert Material	Mounting Type	Type	Shell Material	Note	Orientation	Termination	Current Rating (Amps)	Contact Finish - Mating	Applications	Voltage Rating	Color
Amphenol Sine Systems Corp RT06147PNH	Coupling Nut	Crimp	Shielded	16	Circular	7	14	7	Nickel	Bayonet Lock	IP67 - Dust Tight Waterproof	Silver	-40 °C	105 ░C	Plug Housing	UL94 V-0	Thermoplastic	Free Hanging (In-Line)	For Male Pins	Zinc Alloy	Contacts Not Included	N
Amphenol Sine Systems Corp RT06147SNHECR
Amphenol Sine Systems Corp RT06147SNH03	Coupling Nut	Crimp	Shielded	16	Circular	7	14	7	Nickel	Bayonet Lock	IP67 - Dust Tight Waterproof	Silver	-40 °C	125 °C	Plug Housing	UL94 V-0	Thermoplastic	Free Hanging (In-Line)	For Female Sockets	Zinc Alloy	Contacts Not Included	N
Amphenol Sine Systems Corp RT06147PNHECR
Amphenol Sine Systems Corp RT06147PNH-K	Backshell Coupling Nut		Shielded			7	14	7	Nickel	Bayonet Lock	IP67 - Dust Tight Waterproof		-40 °C	105 ░C	Male Pins Plug	UL94 V-0	Thermoplastic	Free Hanging (In-Line)		Zinc Alloy		N	Crimp	13 A	Gold	Aerospace Automation Industrial Telecom Transportation	500 VAC	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Male Pins Crimp
