8132/03 100
Unknown3M (TC)
CBL RIBN 3COND 0.156 GRAY 10'
Deep-Dive with AI
Search across all available documentation for this part.
8132/03 100
Unknown3M (TC)
CBL RIBN 3COND 0.156 GRAY 10'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8132/03 100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 19 Strands |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 25 ft |
| Length | 7.62 m |
| Length [x] | 100 ft, 10 ft |
| Length [x] | 30.48 m, 3.05 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Ratings | UL E42769 |
| Ribbon Thickness | 1.96 mm |
| Ribbon Thickness | 0.077 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
8132 Series
| Part | Tape Type | Shelf Life Start | Thickness | Thickness | Thickness | Shelf Life | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | Usage | Backing, Carrier | Adhesive | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Length | Length | Width [x] | Width [x] | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Number of Conductors | Jacket Color | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Shielding | Wire Gauge | Insulation Resistance | Features | Cable Type | Ribbon Thickness | Ribbon Thickness | Ribbon Width | Ribbon Width | Jacket (Insulation) Material | Pitch [x] | Pitch [x] | First Conductor Mark | Length [x] | Length [x] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Ribbon Width [x] | Ribbon Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Adhesive Transfer | Date of Manufacture | 0.0125 " | 12.5 mils | 0.317 mm | 24 Months | 70 °F | 21 °C | Bonding | Polycoated Kraft Liner | Acrylic 300LSE | 0.259 mm | 0.0102 in | 10.2 mils | 91.44 cm | 36 in | 609.6 mm | 24 in | 0.0023 " | 2.3 mils | 0.058 mm | ||||||||||||||||||||||||||
3M (TC) | 9 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | 34.14 mm | 1.344 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 100 ft | 30.48 m | 300 V | -20 C | 80 C | UL E42769 | |||||||||||||||||||||||
3M (TC) | 15.24 m 304.8 mm | 1 ft 50 ft | 8 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 300 V | -20 C | 80 C | UL E42769 | 30.18 mm | 1.188 in | |||||||||||||||||||||||
3M (TC) | 22 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | 85.65 mm | 3.372 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 100 ft | 30.48 m | 300 V | -20 C | 80 C | UL E42769 | |||||||||||||||||||||||
3M (TC) | 15 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | 57.91 mm | 2.28 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 100 ft | 30.48 m | 300 V | -20 C | 80 C | UL E42769 | |||||||||||||||||||||||
3M (TC) | 7.62 m | 25 ft | 3 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 10 ft 100 ft | 3.05 m 30.48 m | 300 V | -20 C | 80 C | UL E42769 | |||||||||||||||||||||||
3M (TC) | 6 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | 22.25 mm | 0.876 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 10 ft 100 ft | 3.05 m 30.48 m | 300 V | -20 C | 80 C | UL E42769 | |||||||||||||||||||||||
3M (TC) | 6 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Splice Free | Flat Cable | 1.96 mm | 0.077 in | 22.25 mm | 0.876 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 100 ft | 30.48 m | 300 V | -20 C | 80 C | ||||||||||||||||||||||||
3M (TC) | 5 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 100 ft | 30.48 m | 300 V | -20 C | 80 C | UL E42769 | 18.29 mm | 0.72 in | |||||||||||||||||||||||
3M (TC) | 8 | Gray | Copper Tinned | 30 AWG | 19 Strands | Unshielded | 18 AWG | 10 GOhm | Zippable | Flat Cable | 1.96 mm | 0.077 in | Poly-Vinyl Chloride (PVC) | 0.156 in | 3.96 mm | Red | 100 ft | 30.48 m | 300 V | -20 C | 80 C | UL E42769 | 30.18 mm | 1.188 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.20 | |
| 1 | $ 37.33 | |||
| 5 | $ 30.81 | |||
| 10 | $ 28.33 | |||
| 25 | $ 25.32 | |||
| 50 | $ 23.11 | |||
| 100 | $ 21.28 | |||
| Spool | 100 | $ 1.04 | ||
| 200 | $ 0.94 | |||
| 300 | $ 0.89 | |||
| 500 | $ 0.83 | |||
| 700 | $ 0.79 | |||
| 1000 | $ 0.75 | |||
| 2500 | $ 0.66 | |||
| 5000 | $ 0.63 | |||
Description
General part information
8132 Series

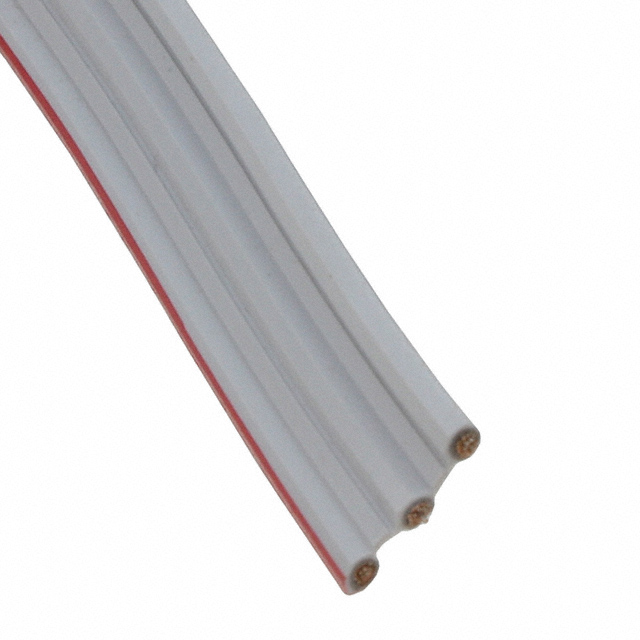

Flat Ribbon Cable Gray 3 Conductors 0.156" (3.96mm) Flat Cable 10.0' (3.05m)
