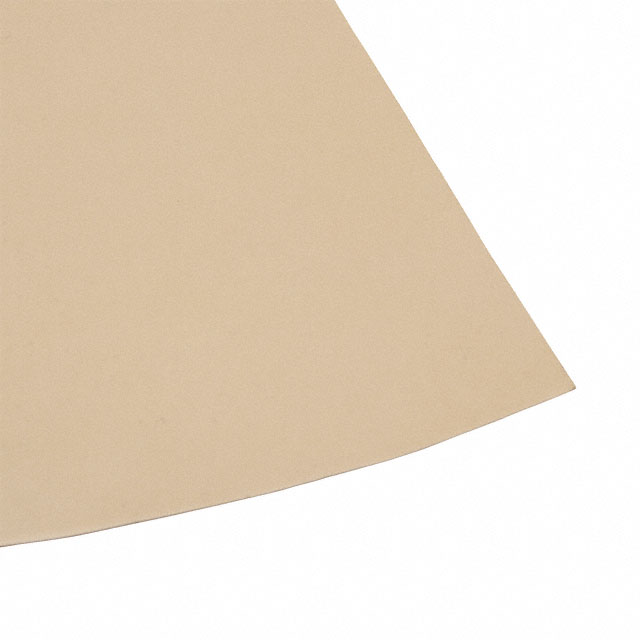

8132LE-24"X36"

Active

3M (TC)

TAPE ADHESIVE TRANSFER 24"X36"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

8132LE-24"X36"

Active

3M (TC)

TAPE ADHESIVE TRANSFER 24"X36"

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8132LE-24"X36"

Adhesive	Acrylic, 300LSE
Backing, Carrier	Polycoated Kraft Liner
Length	91.44 cm
Length	36 in
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Thickness	0.0125 "
Thickness	12.5 mils
Thickness	0.317 mm
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.259 mm
Thickness - Backing, Carrier	0.0102 in
Thickness - Backing, Carrier	10.2 mils
Usage	Bonding
Width [x]	609.6 mm
Width [x]	24 in

8132 Series

Part	Tape Type	Shelf Life Start	Thickness	Thickness	Thickness	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Usage	Backing, Carrier	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Number of Conductors	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	Wire Gauge	Insulation Resistance	Features	Cable Type	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	First Conductor Mark	Length [x]	Length [x]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 8132LE-24"X36"	Adhesive Transfer	Date of Manufacture	0.0125 "	12.5 mils	0.317 mm	24 Months	70 °F	21 °C	Bonding	Polycoated Kraft Liner	Acrylic 300LSE	0.259 mm	0.0102 in	10.2 mils	91.44 cm	36 in	609.6 mm	24 in	0.0023 "	2.3 mils	0.058 mm
3M (TC) 8132/09																						9	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in	34.14 mm	1.344 in	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	100 ft	30.48 m	300 V	-20 C	80 C	UL E42769
3M (TC) 8132/08 100															15.24 m 304.8 mm	1 ft 50 ft						8	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in			Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red			300 V	-20 C	80 C	UL E42769	30.18 mm	1.188 in
3M (TC) 8132/22 100																						22	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in	85.65 mm	3.372 in	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	100 ft	30.48 m	300 V	-20 C	80 C	UL E42769
3M (TC) 8132/15 100																						15	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in	57.91 mm	2.28 in	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	100 ft	30.48 m	300 V	-20 C	80 C	UL E42769
3M (TC) 8132/03 100															7.62 m	25 ft						3	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in			Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	10 ft 100 ft	3.05 m 30.48 m	300 V	-20 C	80 C	UL E42769
3M (TC) 8132/06 100																						6	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in	22.25 mm	0.876 in	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	10 ft 100 ft	3.05 m 30.48 m	300 V	-20 C	80 C	UL E42769
3M (TC) 8132/06 100SF																						6	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Splice Free	Flat Cable	1.96 mm	0.077 in	22.25 mm	0.876 in	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	100 ft	30.48 m	300 V	-20 C	80 C
3M (TC) 8132/05 100																						5	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in			Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	100 ft	30.48 m	300 V	-20 C	80 C	UL E42769	18.29 mm	0.72 in
3M (TC) 8132/08SF 100'																						8	Gray	Copper Tinned	30 AWG	19 Strands	Unshielded	18 AWG	10 GOhm	Zippable	Flat Cable	1.96 mm	0.077 in			Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Red	100 ft	30.48 m	300 V	-20 C	80 C	UL E42769	30.18 mm	1.188 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.87
		10	$ 16.25
		25	$ 15.43
		50	$ 14.62
		100	$ 13.81
		250	$ 13.00
		500	$ 12.18

Description

General part information

8132 Series

Adhesive Transfer Tape Acrylic, 300LSE Adhesive 24.00" (609.60mm) X 36.00" (914.40mm)
