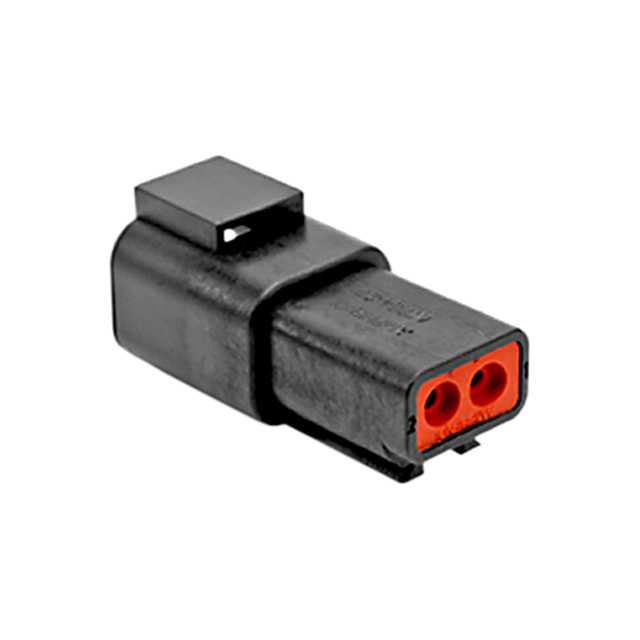

ATP04-2P-BLK

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet +1

ATP04-2P-BLK

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 2POS

Deep-Dive with AI

DocumentsA Series Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP04-2P-BLK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATP04-2P Series

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Positions	Fastening Type	Number of Rows	Color	Contact Type	Insulation Material	Mounting Type	Connector Type	Termination	Contact Shape	Current Rating (Amps)	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Style	Ingress Protection	Shrouding	Number of Positions Loaded	Note	Contact Finish - Mating
Amphenol Sine Systems Corp ATP04-2P-SR01BK	Cap (Cover) IP68 IP69K Sealed Strain Relief	-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-MM01	Cap (Cover) IP68 IP69K Reduced Wire Seals	-55 °C	125 °C	Crimp	2	Latch Holder	1	Gray	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-BM03	Board Guide Board Lock Sealed	-55 °C	125 °C		2	Latch Holder	1		Male Pin	Thermoplastic	Through Hole	Receptacle	Solder	Circular	25 A	Copper Alloy	Black	0.146 in	3.7 mm	Tin	6.7 mm	0.264 in	Board to Cable/Wire	IP68 IP69K	Shrouded - 4 Wall	All
Amphenol Sine Systems Corp ATP04-2P-MM01BLK	Cap (Cover) IP68 IP69K Reduced Wire Seals	-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-EC01		-55 °C	125 °C	Crimp	2	Latch Holder	1	Gray	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle															Contacts Not Included
Amphenol Sine Systems Corp ATP04-2P-PM08GEC		-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic		Receptacle															Contacts Not Included
Amphenol Sine Systems Corp ATP04-2P-PM07GEC		-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic		Receptacle															Contacts Not Included
Amphenol Sine Systems Corp ATP04-2P-SR01	Cap (Cover) IP68 IP69K Sealed Strain Relief	-55 °C	125 °C	Crimp	2	Latch Holder	1	Gray	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-BM12	Board Guide Potting Wall Sealed	-55 °C	125 °C		2	Latch Holder	1		Male Pin	Thermoplastic	Through Hole	Receptacle	Solder	Circular	25 A	Copper Alloy	Black	0.146 in	3.7 mm	Gold	6.7 mm	0.264 in	Board to Cable/Wire	IP68 IP69K	Shrouded - 4 Wall	All		Gold
Amphenol Sine Systems Corp ATP04-2P-BLK	Sealed	-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle															Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.70
		10	$ 2.45
		25	$ 2.32
		50	$ 2.27
		100	$ 2.16
		250	$ 1.89
		500	$ 1.84
		1000	$ 1.57
		2500	$ 1.46

Description

General part information

ATP04-2P Series

2 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

A Series Family

Datasheet

ATP Series

Datasheet
