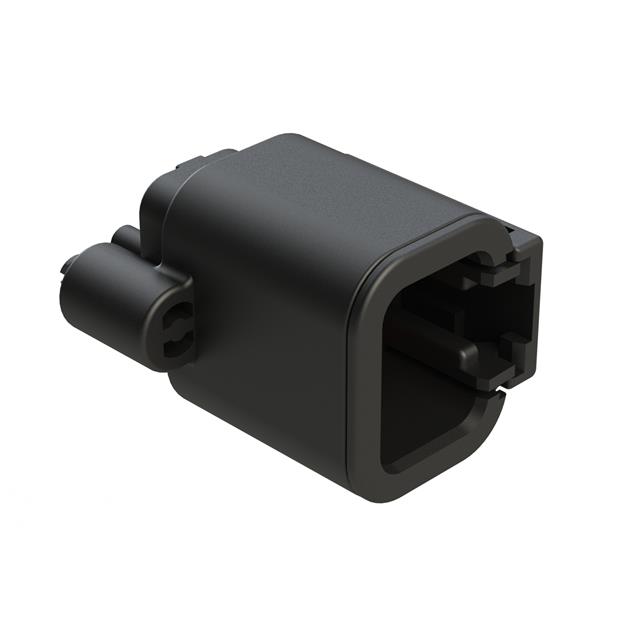

ATP04-2P-BM03

Active

Amphenol Sine Systems Corp

2 POSITION, STRAIGHT PCB RECEPTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP04-2P-BM03

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	25 A
Fastening Type	Latch Holder
Features	Board Lock, Sealed, Board Guide
Ingress Protection	IP68, IP69K
Insulation Color	Black
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.7 mm
Pitch - Mating	0.264 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

ATP04-2P Series

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Positions	Fastening Type	Number of Rows	Color	Contact Type	Insulation Material	Mounting Type	Connector Type	Termination	Contact Shape	Current Rating (Amps)	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Style	Ingress Protection	Shrouding	Number of Positions Loaded	Note	Contact Finish - Mating
Amphenol Sine Systems Corp ATP04-2P-SR01BK	Cap (Cover) IP68 IP69K Sealed Strain Relief	-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-MM01	Cap (Cover) IP68 IP69K Reduced Wire Seals	-55 °C	125 °C	Crimp	2	Latch Holder	1	Gray	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-BM03	Board Guide Board Lock Sealed	-55 °C	125 °C		2	Latch Holder	1		Male Pin	Thermoplastic	Through Hole	Receptacle	Solder	Circular	25 A	Copper Alloy	Black	0.146 in	3.7 mm	Tin	6.7 mm	0.264 in	Board to Cable/Wire	IP68 IP69K	Shrouded - 4 Wall	All
Amphenol Sine Systems Corp ATP04-2P-MM01BLK	Cap (Cover) IP68 IP69K Reduced Wire Seals	-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-EC01		-55 °C	125 °C	Crimp	2	Latch Holder	1	Gray	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle															Contacts Not Included
Amphenol Sine Systems Corp ATP04-2P-PM08GEC		-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic		Receptacle															Contacts Not Included
Amphenol Sine Systems Corp ATP04-2P-PM07GEC		-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic		Receptacle															Contacts Not Included
Amphenol Sine Systems Corp ATP04-2P-SR01	Cap (Cover) IP68 IP69K Sealed Strain Relief	-55 °C	125 °C	Crimp	2	Latch Holder	1	Gray	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle
Amphenol Sine Systems Corp ATP04-2P-BM12	Board Guide Potting Wall Sealed	-55 °C	125 °C		2	Latch Holder	1		Male Pin	Thermoplastic	Through Hole	Receptacle	Solder	Circular	25 A	Copper Alloy	Black	0.146 in	3.7 mm	Gold	6.7 mm	0.264 in	Board to Cable/Wire	IP68 IP69K	Shrouded - 4 Wall	All		Gold
Amphenol Sine Systems Corp ATP04-2P-BLK	Sealed	-55 °C	125 °C	Crimp	2	Latch Holder	1	Black	Male Pin	Thermoplastic	Free Hanging (In-Line)	Receptacle															Contacts Not Included
