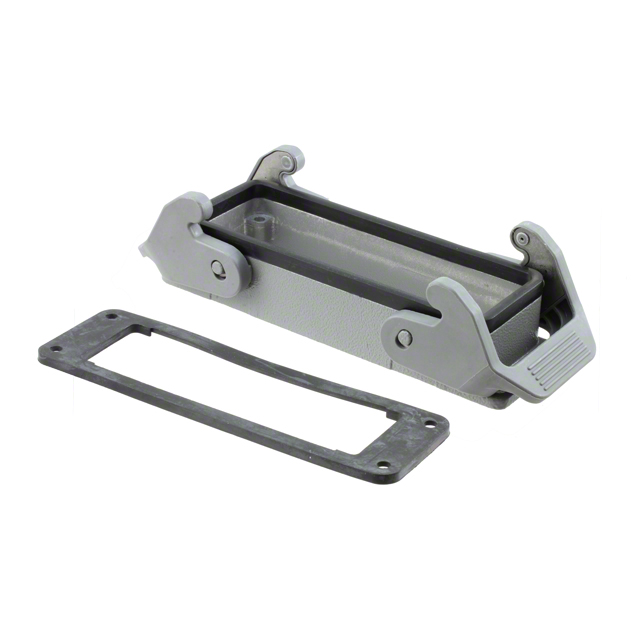

H24B-AG-SL
ActiveTE Connectivity Raychem Cable Protection
CONN BASE BOTTOM SZ24B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H24B-AG-SL
ActiveTE Connectivity Raychem Cable Protection
CONN BASE BOTTOM SZ24B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H24B-AG-SL |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 24 B |
| Size / Dimension [x] | 142.2 mm |
| Size / Dimension [x] | 5.598 in |
| Size / Dimension [y] | 1.799 " |
| Size / Dimension [y] | 45.7 mm |
| Size / Dimension [z] | 1.173 in |
| Size / Dimension [z] | 29.8 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.38 | |
| 10 | $ 17.02 | |||
| 25 | $ 16.56 | |||
| 50 | $ 15.75 | |||
| 100 | $ 14.21 | |||
| 250 | $ 14.12 | |||
| 500 | $ 12.31 | |||
Description
General part information
H24B Series
Base - Panel Mount Connector Bottom Entry 24B IP65 - Dust Tight, Water Resistant
