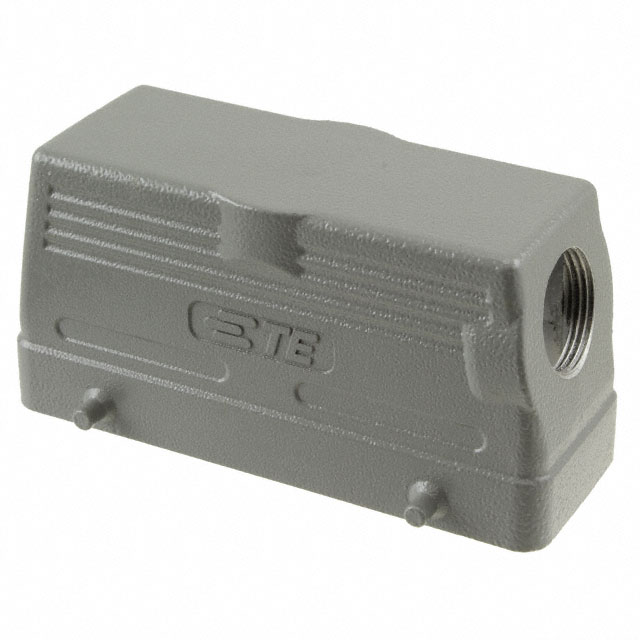

H24B-TS-M25

Active

TE Connectivity Raychem Cable Protection

CONN HOOD SIDE ENTRY SZ24B M25

Deep-Dive with AI

Search across all available documentation for this part.

H24B-TS-M25

Active

TE Connectivity Raychem Cable Protection

CONN HOOD SIDE ENTRY SZ24B M25

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H24B-TS-M25

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	60 mm
Size / Dimension [z]	2.362 "
Style	Side Entry
Thread Size	M25

H24B Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Ingress Protection	Connector Type	Housing Color	Housing Material	Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Size	Features
TE Connectivity Raychem Cable Protection H24B-TGH-2PG21	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Dual Top Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	PG21	24 B
TE Connectivity Raychem Cable Protection H24B-TSH-RO-PG21	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Side Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	PG21	24 B
TE Connectivity Raychem Cable Protection H24B-TS-PG21	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Side Entry	120 mm	4.724 "	43 mm	60 mm	1.693 in	2.362 "	PG21	24 B
TE Connectivity Raychem Cable Protection H24B-ADM-LB	Powder Coated	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Gray	Aluminum Alloy Die Cast	Bottom Entry	142.2 mm	5.598 in	45.7 mm	29.8 mm	1.799 "	1.173 in		24 B	Cover
TE Connectivity Raychem Cable Protection H24B-TGH-M32	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Top Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	M32	24 B
TE Connectivity Raychem Cable Protection H24B-SGR-M25	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Base - Box Mount	Gray	Aluminum Alloy Die Cast	Side Entry							M25	24 B
TE Connectivity Raychem Cable Protection H24B-TGH-2PG29	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Dual Top Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	PG29	24 B
TE Connectivity Raychem Cable Protection H24B-TS-M25	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Side Entry	120 mm	4.724 "	43 mm	60 mm	1.693 in	2.362 "	M25	24 B
TE Connectivity Raychem Cable Protection H24B-AG-SL	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Gray	Aluminum Alloy Die Cast	Bottom Entry	142.2 mm	5.598 in	45.7 mm	29.8 mm	1.799 "	1.173 in		24 B
TE Connectivity Raychem Cable Protection H24B-TSH-M40	Powder Coated	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Hood	Gray	Aluminum Alloy Die Cast	Side Entry	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in		24 B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.92
		10	$ 10.75
		14	$ 10.72
		25	$ 9.98
		28	$ 10.21
		50	$ 9.43
		56	$ 9.72
		100	$ 8.91
		105	$ 9.30
		250	$ 8.28
		252	$ 8.74
		500	$ 7.83
		504	$ 8.33
		1000	$ 7.40
		1001	$ 7.93

Description

General part information

H24B Series

Hood Connector Side Entry M25 24B IP65 - Dust Tight, Water Resistant
