90546-1

Active

TE Application Tooling

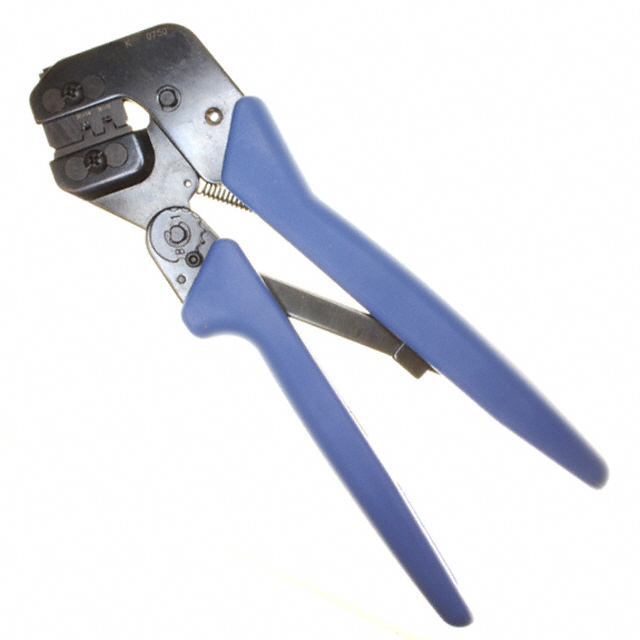

TOOL HAND CRIMPER 14-20AWG SIDE

Search across all available documentation for this part.

Active

TE Application Tooling

TOOL HAND CRIMPER 14-20AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	90546-1

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	20 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

Part	Compatible Tools	For Use With/Related Products	Tool Type	Ratcheting	Wire Entry Location	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
TE Application Tooling 90546-2	1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0	Rectangular Contacts 14-20 AWG	Die Set
TE Application Tooling 90546-1		Rectangular Contacts	Hand Crimper	Ratchet	Side Entry	20 AWG	14 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Rectangular Contacts
