90546-2

Active

TE Application Tooling

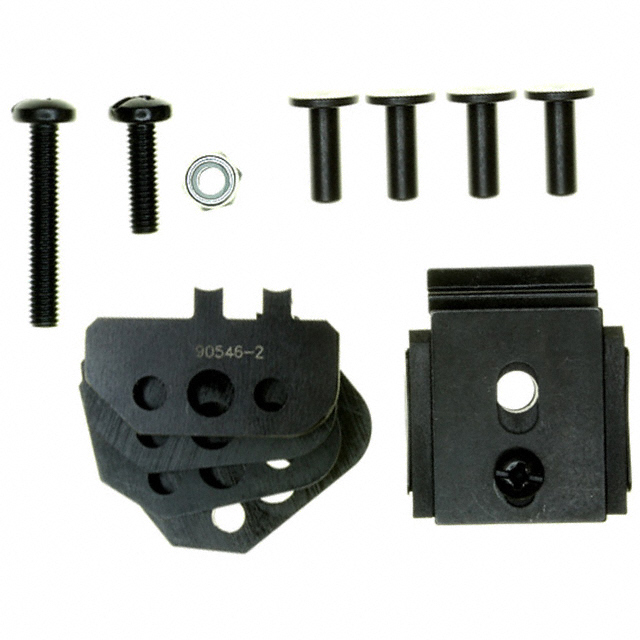

TOOL DIESET 14-20AWG UNI-MATE

Search across all available documentation for this part.

Active

TE Application Tooling

TOOL DIESET 14-20AWG UNI-MATE

Technical Specifications

Parameters and characteristics for this part

Specification	90546-2

Compatible Tools	9-1478240-0, 679304-1, 354940-1, 1213890-1, 1213890-2, 1490076-2
For Use With/Related Products	Rectangular Contacts, 14-20 AWG
Tool Type	Die Set

Part	Compatible Tools	For Use With/Related Products	Tool Type	Ratcheting	Wire Entry Location	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
TE Application Tooling 90546-2	1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0	Rectangular Contacts 14-20 AWG	Die Set
TE Application Tooling 90546-1		Rectangular Contacts	Hand Crimper	Ratchet	Side Entry	20 AWG	14 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Die Set For Rectangular Contacts, 14-20 AWG
