45220-520230

Active

3M (TC)

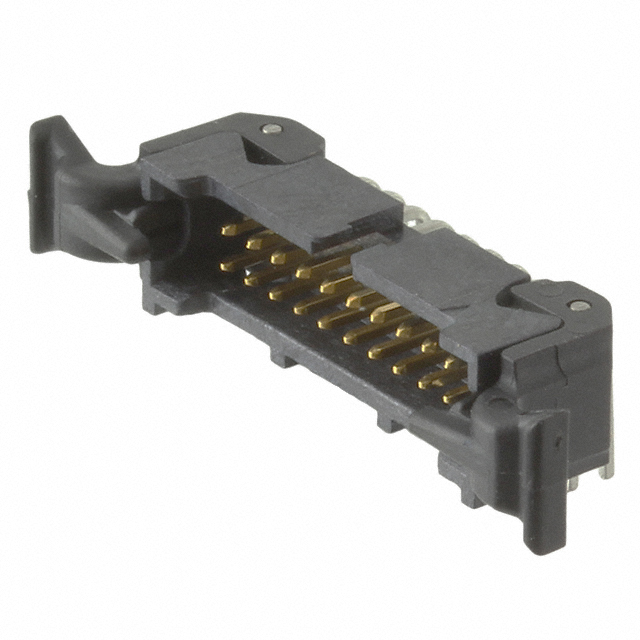

CONN, R/A HDR, 20POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 451, 452 Series Product Spec

45220-520230

Active

3M (TC)

CONN, R/A HDR, 20POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet 451, 452 Series Product Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45220-520230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45220 Series

Part	Contact Material	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Material Flammability Rating	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Number of Positions Loaded	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Insulation Height	Insulation Height	Features	Fastening Type	Contact Finish - Mating	Style	Termination	Shrouding	Insulation Material	Contact Type	Mounting Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 45220-620200	Copper Alloy	Header	0.05 in	1.27 mm	2.54 µm	100 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	Flash	20	Square	5.65 mm	0.222 "	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	125 VDC
3M (TC) 45220-620230	Copper Alloy	Header	0.05 in	1.27 mm	5.08 µm	200 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All		20	Square	5.65 mm	0.222 "	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	125 VDC	30 Áin	0.76 Ám
3M (TC) 45220-520230	Copper Alloy	Header	0.05 in	1.27 mm	5.08 µm	200 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm		All		20	Square	5.33 mm	0.21 in	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle	125 VDC	30 Áin	0.76 Ám
3M (TC) 45220-520200	Copper Alloy	Header	0.05 in	1.27 mm	2.54 µm	100 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm		All	Flash	20	Square	5.33 mm	0.21 in	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle	125 VDC
3M (TC) 45220-220200	Copper Alloy	Header	0.05 in	1.27 mm	2.54 µm	100 µin	2	UL94 V-0	Tin	125 °C	-65 ░C			0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	Flash	20	Square	5.65 mm	0.222 "	Keying Slot Pick and Place	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Surface Mount	125 VDC
