45220-620230

Active

3M (TC)

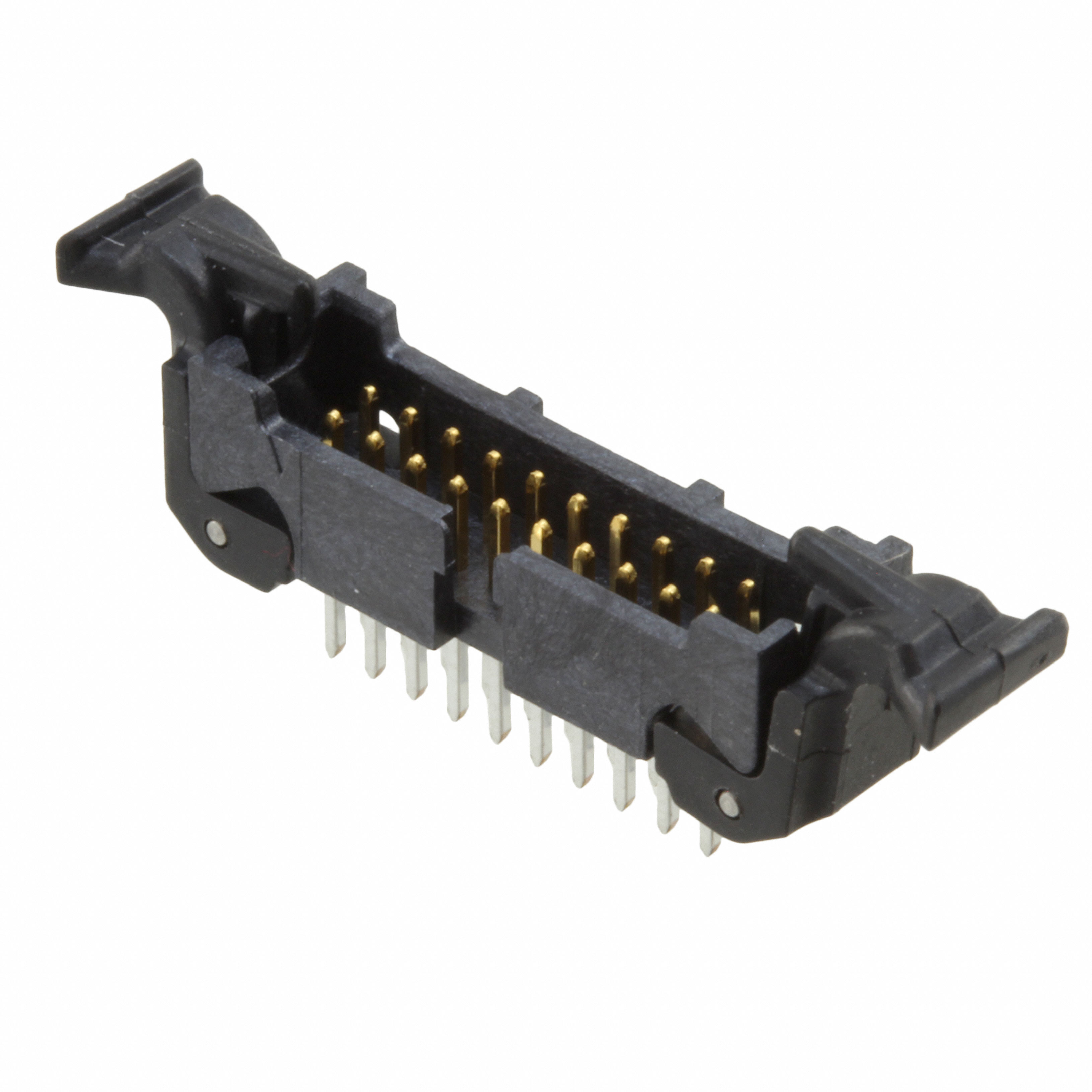

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Series Product Spec Datasheet +2

45220-620230

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Documents451, 452 Series Product Spec Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45220-620230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45220 Series

Part	Contact Material	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Material Flammability Rating	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Number of Positions Loaded	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Insulation Height	Insulation Height	Features	Fastening Type	Contact Finish - Mating	Style	Termination	Shrouding	Insulation Material	Contact Type	Mounting Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 45220-620200	Copper Alloy	Header	0.05 in	1.27 mm	2.54 µm	100 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	Flash	20	Square	5.65 mm	0.222 "	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	125 VDC
3M (TC) 45220-620230	Copper Alloy	Header	0.05 in	1.27 mm	5.08 µm	200 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All		20	Square	5.65 mm	0.222 "	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	125 VDC	30 Áin	0.76 Ám
3M (TC) 45220-520230	Copper Alloy	Header	0.05 in	1.27 mm	5.08 µm	200 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm		All		20	Square	5.33 mm	0.21 in	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle	125 VDC	30 Áin	0.76 Ám
3M (TC) 45220-520200	Copper Alloy	Header	0.05 in	1.27 mm	2.54 µm	100 µin	2	UL94 V-0	Tin	125 °C	-65 ░C	0.094 in	2.4 mm	0.05 in	1.27 mm		All	Flash	20	Square	5.33 mm	0.21 in	Keying Slot	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle	125 VDC
3M (TC) 45220-220200	Copper Alloy	Header	0.05 in	1.27 mm	2.54 µm	100 µin	2	UL94 V-0	Tin	125 °C	-65 ░C			0.05 in	1.27 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	All	Flash	20	Square	5.65 mm	0.222 "	Keying Slot Pick and Place	Latch Lock/Eject Hooks Short	Gold	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Male Pin	Surface Mount	125 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.06
		10	$ 7.72
		80	$ 6.15
		440	$ 5.16
		945	$ 4.79
Newark	Each	100	$ 7.20
		250	$ 6.44
		500	$ 6.08
		1000	$ 5.31

Description

General part information

45220 Series

The 45220-620230 is a 20-position 2-row shrouded Board-mount Header with copper alloy contacts and a liquid-crystal polymers body. It has polyphthalamide latch. It is compatible with 451 series ribbon cable socket.
