SF-1206HHA3000R-2 - SF-1206HHA1000R-2

SF-1206HHA3000R-2

Active
Bourns Inc.

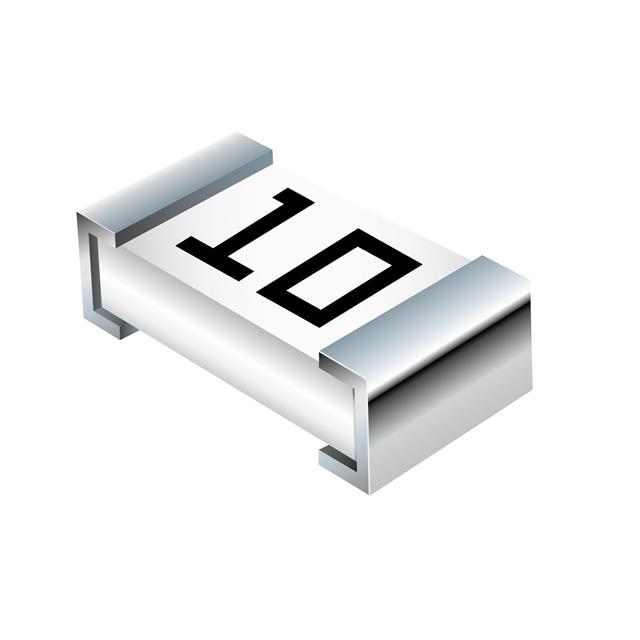

FUSE CHIP 30A 50V SMD SOLDER PAD 1206 3.2 X 1.65 X 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SF-1206HHA3000R-2 - SF-1206HHA1000R-2

SF-1206HHA3000R-2

Active
Bourns Inc.

FUSE CHIP 30A 50V SMD SOLDER PAD 1206 3.2 X 1.65 X 1MM

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationSF-1206HHA3000R-2
Approval AgencyUL, cUL, AEC-Q200
Breaking Capacity @ Rated Voltage200 A
Current Rating (Amps)30 A
DC Cold Resistance0.001 Ohms
Fuse TypeBoard Mount
Melting I²t280.2
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case1206 (3216 Metric)
Size / Dimension [x]3.2 mm
Size / Dimension [x]0.126 in
Size / Dimension [y]1.65 mm
Size / Dimension [y]0.065 in
Size / Dimension [z]0.047 "
Size / Dimension [z]1.2 mm
Voltage Rating - AC50 V
Voltage Rating - DC50 VDC

SF-1206 Series
