SF-1206S200-2

Active

Bourns Inc.

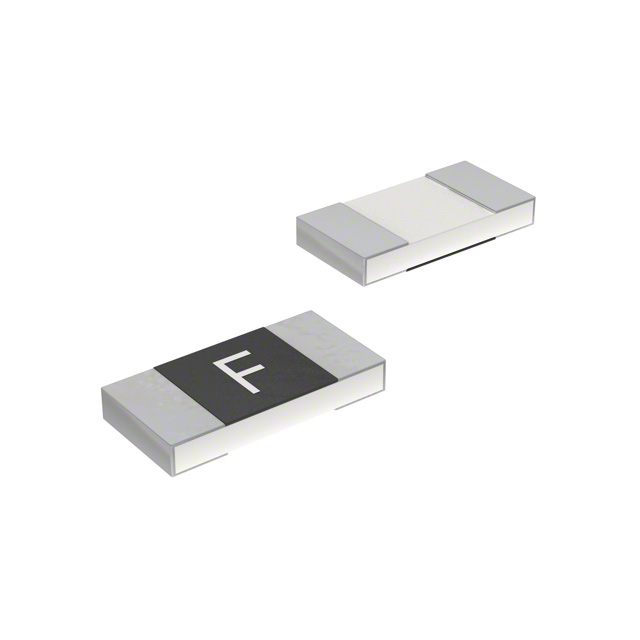

FUSE, SURFACE MOUNT, 2 A, SLOW BLOW, 63 VDC, 1206 [3216 METRIC], SF-1206S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SF-1206S200-2

Active

Bourns Inc.

FUSE, SURFACE MOUNT, 2 A, SLOW BLOW, 63 VDC, 1206 [3216 METRIC], SF-1206S

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF-1206S200-2

Approval Agency	UL
Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	2 A
DC Cold Resistance	0.032 Ohms
Fuse Type	Board Mount
Melting I²t	0.339
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Package / Case	1206 (3216 Metric)
Response Time	Slow Blow
Size / Dimension [x]	0.122 "
Size / Dimension [x]	3.1 mm
Size / Dimension [y]	0.061 in
Size / Dimension [y]	1.55 mm
Size / Dimension [z]	0.6 mm
Size / Dimension [z]	0.024 "
Voltage Rating - DC	63 VDC

SF-1206 Series

Part	Package / Case	Approval Agency	Mounting Type	Current Rating (Amps)	Fuse Type	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	DC Cold Resistance	Response Time	Melting I˛t
Bourns Inc. SF-1206HHA1500R-2	1206 (3216 Metric)	AEC-Q200 cUL UL	Surface Mount	15 A	Board Mount	100 A	50 V	77	-55 °C	125 °C	3.2 mm	1.65 mm	0.047 "	1.2 mm	0.126 in	0.065 in	50 VDC	0.0026 Ohms
Bourns Inc. SF-1206HHA2500R-2	1206 (3216 Metric)	AEC-Q200 cUL UL	Surface Mount	25 A	Board Mount	200 A	50 V	171.7	-55 °C	125 °C	3.2 mm	1.65 mm	0.047 "	1.2 mm	0.126 in	0.065 in	50 VDC	0.0013 Ohms
Bourns Inc. SF-1206F300-2	1206 (3216 Metric)	UL	Surface Mount	3 A	Board Mount	50 A		0.501	-20 C	105 ░C	3.1 mm	1.55 mm	0.024 "	0.6 mm	0.122 "	0.061 in	32 V	0.023 Ohms	Fast Blow
Bourns Inc. SF-1206SP700-2	1206 (3216 Metric)	UL	Surface Mount	7 A	Board Mount	50 A		10.17	-20 C	105 ░C	3.1 mm	1.55 mm	0.024 "	0.6 mm	0.122 "	0.061 in	32 V		Slow Blow
Bourns Inc. SF-1206S300M-2	1206 (3216 Metric)		Surface Mount	3 A	Board Mount	50 A		0.21	-55 °C	125 °C	3.2 mm	1.6 mm	0.033 "	0.85 mm	0.126 in	0.063 in	32 V	0.031 Ohms	Slow Blow
Bourns Inc. SF-1206HHA3000R-2	1206 (3216 Metric)	AEC-Q200 cUL UL	Surface Mount	30 A	Board Mount	200 A	50 V	280.2	-55 °C	125 °C	3.2 mm	1.65 mm	0.047 "	1.2 mm	0.126 in	0.065 in	50 VDC	0.001 Ohms
Bourns Inc. SF-1206SP700M-2	1206 (3216 Metric)		Surface Mount	7 A	Board Mount	60 A			-55 °C	150 °C	3.2 mm	1.6 mm	0.038 "	0.97 mm	0.126 in	0.063 in	24 V	0.01 Ohms	Slow Blow	10
Bourns Inc. SF-1206HH2500R-2	1206 (3216 Metric)	cUL UL	Surface Mount	25 A	Board Mount	200 A	50 V	171.7	-55 °C	150 °C	3.2 mm	1.65 mm	0.047 "	1.2 mm	0.126 in	0.065 in	50 VDC	0.0013 Ohms
Bourns Inc. SF-1206S200-2	1206 (3216 Metric)	UL	Surface Mount	2 A	Board Mount	50 A		0.339	-20 C	105 ░C	3.1 mm	1.55 mm	0.024 "	0.6 mm	0.122 "	0.061 in	63 VDC	0.032 Ohms	Slow Blow
Bourns Inc. SF-1206S400-2	1206 (3216 Metric)	UL	Surface Mount	4 A	Board Mount	50 A			-20 C	105 ░C	3.1 mm	1.55 mm	0.024 "	0.6 mm	0.122 "	0.061 in	32 V	0.014 Ohms	Slow Blow	1.537
