M55-7101642R

Active

Harwin Inc.

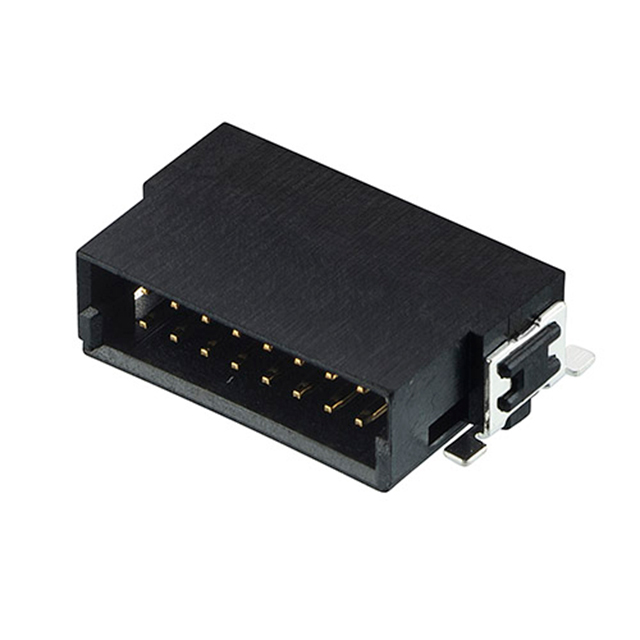

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM55-6001242R M55-6001242R +3

M55-7101642R

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

DocumentsM55-6001242R M55-6001242R +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M55-7101642R

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	1.2 A
Fastening Type	Latch Lock
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

M55-710 Series

Part	Fastening Type	Number of Positions	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Features	Connector Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Mounting Type	Number of Rows	Current Rating (Amps)	Insulation Material	Applications	Contact Material	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish - Post	Number of Positions
Harwin Inc. M55-7106842R	Latch Lock	68	Male Pin	1 µin	0.025 µm	0.05 in	1.27 mm	Gold	Board Guide Solder Retention	Header	Solder	2.54 µm	100 µin	Rectangular	All	Shrouded - 4 Wall	0.05 in	1.27 mm	-55 °C	125 °C	Black	Surface Mount Right Angle	2	1.2 A	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	Phosphor Bronze	4 mm	0.157 in	0.165 in	4.2 mm	UL94 V-0	Tin
Harwin Inc. M55-7105042R	Latch Lock	50	Male Pin	1 µin	0.025 µm	0.05 in	1.27 mm	Gold	Board Guide Solder Retention	Header	Solder	2.54 µm	100 µin	Rectangular	All	Shrouded - 4 Wall	0.05 in	1.27 mm	-55 °C	125 °C	Black	Surface Mount Right Angle	2	1.2 A	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	Phosphor Bronze	4 mm	0.157 in	0.165 in	4.2 mm	UL94 V-0	Tin
Harwin Inc. M55-7102642R	Latch Lock	26	Male Pin	1 µin	0.025 µm	0.05 in	1.27 mm	Gold	Board Guide Solder Retention	Header	Solder	2.54 µm	100 µin	Rectangular	All	Shrouded - 4 Wall	0.05 in	1.27 mm	-55 °C	125 °C	Black	Surface Mount Right Angle	2	1.2 A	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	Phosphor Bronze	4 mm	0.157 in	0.165 in	4.2 mm	UL94 V-0	Tin
Harwin Inc. M55-7101642R	Latch Lock		Male Pin	1 µin	0.025 µm	0.05 in	1.27 mm	Gold	Board Guide Solder Retention	Header	Solder	2.54 µm	100 µin	Rectangular	All	Shrouded - 4 Wall	0.05 in	1.27 mm	-55 °C	125 °C	Black	Surface Mount Right Angle	2	1.2 A	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	Phosphor Bronze	4 mm	0.157 in	0.165 in	4.2 mm	UL94 V-0	Tin	16
Harwin Inc. M55-7102042R	Latch Lock	20	Male Pin	1 µin	0.025 µm	0.05 in	1.27 mm	Gold	Board Guide Solder Retention	Header	Solder	2.54 µm	100 µin	Rectangular	All	Shrouded - 4 Wall	0.05 in	1.27 mm	-55 °C	125 °C	Black	Surface Mount Right Angle	2	1.2 A	Liquid Crystal Polymer (LCP)	Automotive General Purpose Industrial	Phosphor Bronze	4 mm	0.157 in	0.165 in	4.2 mm	UL94 V-0	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.32
		10	$ 1.77
		100	$ 1.37
	Digi-Reel®	1	$ 2.32
		10	$ 1.77
		100	$ 1.37
	Tape & Reel (TR)	600	$ 1.13
		1200	$ 1.05
		1800	$ 1.01
		3000	$ 0.96
		4200	$ 0.93
		6000	$ 0.90
Newark	Each (Supplied on Full Reel)	500	$ 1.36
		800	$ 1.22
		1600	$ 1.11

Description

General part information

M55-710 Series

Connector Header Surface Mount, Right Angle 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

M55-6001242R

Datasheet

M55-6001242R

Datasheet

M55-6001242R

Technical Data Sheet EN

Datasheet
