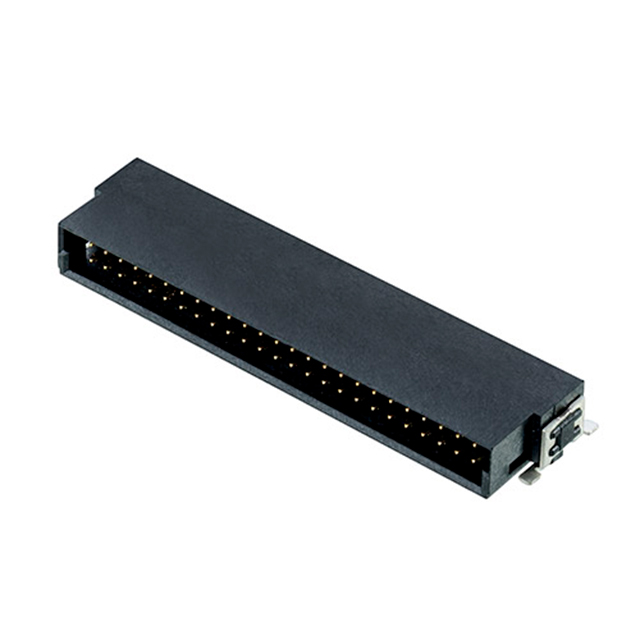

Specification	M55-7105042R

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.157 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	1.2 A
Fastening Type	Latch Lock
Features	Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.165 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Shrouded - 4 Wall
Style	Board
Termination	Solder

M55-710 Series

Part	Insulation Color	Current Rating	Contact Shape	Contact Material	Number of Rows	Shrouding	Contact Type	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Material	Mounting Type	Number of Positions	Features	Insulation Height	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Pitch - Mating	Style	Fastening Type	Number of Positions Loaded	Row Spacing - Mating	Connector Type	Termination	Material Flammability Rating	Applications	Contact Finish Thickness - Post
Harwin Inc. M55-7106842R	Black	1.2 A	Rectangular	Phosphor Bronze	2	Shrouded - 4 Wall	Male Pin	1 µin	0.157 in	Tin	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	68	Board Guide Solder Retention	0.165 in	Gold	125 °C	-55 °C	0.05 in	Board	Latch Lock	All	0.05 in	Header	Solder	UL94 V-0	Automotive General Purpose Industrial	100 Ąin
Harwin Inc. M55-7105042R	Black	1.2 A	Rectangular	Phosphor Bronze	2	Shrouded - 4 Wall	Male Pin	1 µin	0.157 in	Tin	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	50	Board Guide Solder Retention	0.165 in	Gold	125 °C	-55 °C	0.05 in	Board	Latch Lock	All	0.05 in	Header	Solder	UL94 V-0	Automotive General Purpose Industrial	100 Ąin
Harwin Inc. M55-7102642R	Black	1.2 A	Rectangular	Phosphor Bronze	2	Shrouded - 4 Wall	Male Pin	1 µin	0.157 in	Tin	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	26	Board Guide Solder Retention	0.165 in	Gold	125 °C	-55 °C	0.05 in	Board	Latch Lock	All	0.05 in	Header	Solder	UL94 V-0	Automotive General Purpose Industrial	100 Ąin
Harwin Inc. M55-7101242R	Black	1.2 A	Rectangular	Phosphor Bronze	2	Shrouded - 4 Wall	Male Pin	1 µin	0.157 in	Tin	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	12	Board Guide Solder Retention	0.165 in	Gold	125 °C	-55 °C	0.05 in	Board	Latch Lock	All	0.05 in	Header	Solder	UL94 V-0	Automotive General Purpose Industrial	100 Ąin
Harwin Inc. M55-7101642R	Black	1.2 A	Rectangular	Phosphor Bronze	2	Shrouded - 4 Wall	Male Pin	1 µin	0.157 in	Tin	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	16	Board Guide Solder Retention	0.165 in	Gold	125 °C	-55 °C	0.05 in	Board	Latch Lock	All	0.05 in	Header	Solder	UL94 V-0	Automotive General Purpose Industrial	100 Ąin
Harwin Inc. M55-7102042R	Black	1.2 A	Rectangular	Phosphor Bronze	2	Shrouded - 4 Wall	Male Pin	1 µin	0.157 in	Tin	Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	20	Board Guide Solder Retention	0.165 in	Gold	125 °C	-55 °C	0.05 in	Board	Latch Lock	All	0.05 in	Header	Solder	UL94 V-0	Automotive General Purpose Industrial	100 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

M55-7105042R | Datasheet
