1747996-3
ActiveTE Connectivity Raychem Cable Protection

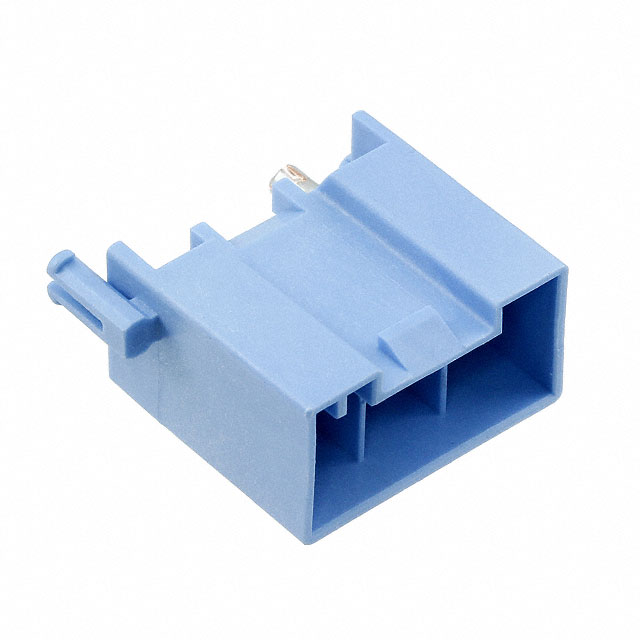

GHC EYELET 12.4 2POS HEADER ASSY BLUE
Deep-Dive with AI
Search across all available documentation for this part.
1747996-3
ActiveTE Connectivity Raychem Cable Protection
GHC EYELET 12.4 2POS HEADER ASSY BLUE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1747996-3 |
|---|---|
| Applications | General Purpose, Industrial |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Lock |
| Insulation Color | Blue |
| Insulation Height | 17.91 mm |
| Insulation Height | 0.705 " |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1200 | $ 1.28 | |
Description
General part information
GRACE INERTIA 12.4 Series
PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 12.4 mm [.488 in] Centerline, Fully Shrouded, Tin (Sn), GRACE INERTIA 12.4
