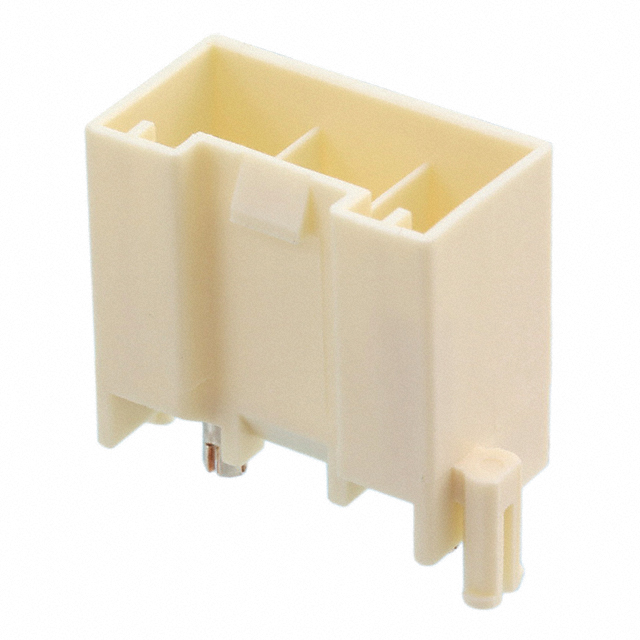

1747996-1
ActiveTE Connectivity Raychem Cable Protection
CONN SHROUDED HEADER (4 SIDES) HDR 2POWER POS 12.4MM SOLDER ST THRU-HOLE BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1747996-1
ActiveTE Connectivity Raychem Cable Protection
CONN SHROUDED HEADER (4 SIDES) HDR 2POWER POS 12.4MM SOLDER ST THRU-HOLE BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1747996-1 |
|---|---|
| Applications | General Purpose, Industrial |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Lock |
| Insulation Color | Natural |
| Insulation Height | 17.91 mm |
| Insulation Height | 0.705 " |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating | 0.488 " |
| Pitch - Mating | 12.4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 10 | $ 1.00 | |||
| 150 | $ 0.86 | |||
| 600 | $ 0.76 | |||
| 1050 | $ 0.68 | |||
| 5100 | $ 0.62 | |||
| 10050 | $ 0.58 | |||
Description
General part information
GRACE INERTIA 12.4 Series
Connector Header Through Hole 2 position 0.488" (12.40mm)
