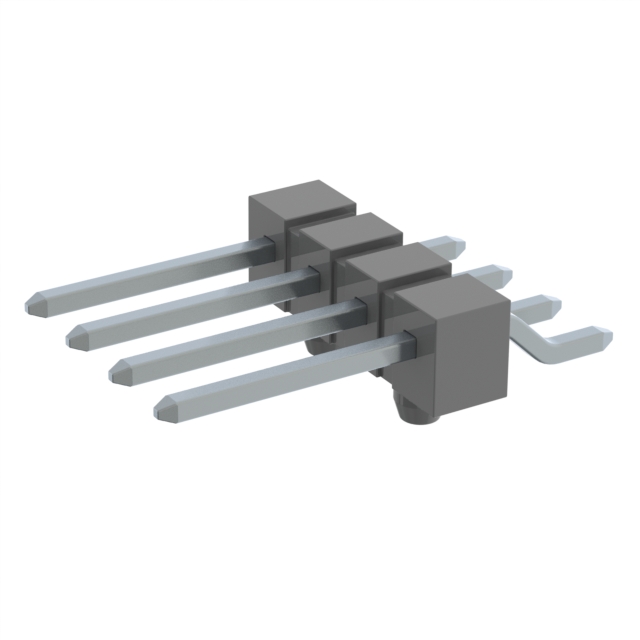

TSM-104-02-T-SH-A-K

Active

Samtec Inc.

CONN HEADER SMD R/A 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-104-02-T-SH-A-K

Active

Samtec Inc.

CONN HEADER SMD R/A 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-104-02-T-SH-A-K

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-104 Series

...

Part	Fastening Type	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Insulation Material	Features	Contact Length - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Insulation Color	Style	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Contact Type	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded
Samtec Inc. TSM-104-02-T-SV-A-P	Push-Pull	UL94 V-0	0.1 in	2.54 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	8.13 mm	0.32 in	Square	Surface Mount	Black	Board to Board Cable	Tin	All	4	Male Pin	Solder	1	105 ░C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded
Samtec Inc. TSM-104-02-S-SH-LC	Push-Pull	UL94 V-0	0.12 in	3.05 mm	Header	Liquid Crystal Polymer (LCP)		8.13 mm	0.32 in	Square	Surface Mount Right Angle	Black	Board to Board Cable	Tin	All	4	Male Pin	Solder	1	125 °C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded	Gold	30 Áin	0.76 Ám
Samtec Inc. TSM-104-02-T-SH-A-K	Push-Pull	UL94 V-0	0.12 in	3.05 mm	Header	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	8.13 mm	0.32 in	Square	Surface Mount Right Angle	Black	Board to Board Cable	Tin	All	4	Male Pin	Solder	1	105 ░C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded
Samtec Inc. TSM-104-03-T-SV-P-TR	Push-Pull	UL94 V-0	0.1 in	2.54 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	Pick and Place	10.67 mm	0.42 in	Square	Surface Mount	Black	Board to Board Cable	Tin	All	4	Male Pin	Solder	1	105 ░C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded
Samtec Inc. TSM-104-01-F-DH-A	Push-Pull	UL94 V-0	0.24 in	6.1 mm	Header	Liquid Crystal Polymer (LCP)	Board Guide	5.84 mm		Square	Surface Mount Right Angle	Black	Board to Board Cable	Tin	All	8	Male Pin	Solder	2	125 °C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded	Gold	3 µin	0.076 µm	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-104-02-S-SH-A-P	Push-Pull	UL94 V-0	0.12 in	3.05 mm	Header	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	8.13 mm	0.32 in	Square	Surface Mount Right Angle	Black	Board to Board Cable	Tin	All	4	Male Pin	Solder	1	125 °C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded	Gold	30 Áin	0.76 Ám
Samtec Inc. TSM-104-01-S-EM-007	Push-Pull	UL94 V-0			Header	Liquid Crystal Polymer (LCP)		5.84 mm		Square	Board Edge Straddle Mount	Black	Board to Board Cable	Tin		8	Male Pin	Solder	2	125 °C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded	Gold	30 Áin	0.76 Ám	0.23 in	2.54 mm	0.1 in	7
Samtec Inc. TSM-104-04-S-DV-P-TR	Push-Pull	UL94 V-0	0.1 in	2.54 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	Pick and Place	3.05 mm	0.12 in	Square	Surface Mount	Black	Board to Board Cable	Tin	All	8	Male Pin	Solder	2	125 °C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded	Gold	30 Áin	0.76 Ám		2.54 mm	0.1 in
Samtec Inc. TSM-104-04-TM-SV-P-TR	Push-Pull	UL94 V-0	0.1 in	2.54 mm	Cuttable Header	Liquid Crystal Polymer (LCP)	Pick and Place	3.05 mm	0.12 in	Square	Surface Mount	Black	Board to Board Cable	Tin	All	4	Male Pin	Solder	1	105 ░C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded
Samtec Inc. TSM-104-02-S-DH	Push-Pull	UL94 V-0	0.24 in	6.1 mm	Header	Liquid Crystal Polymer (LCP)		8.13 mm	0.32 in	Square	Surface Mount Right Angle	Black	Board to Board Cable	Tin	All	8	Male Pin	Solder	2	125 °C	-55 °C	Phosphor Bronze	0.1 in	2.54 mm	Unshrouded	Gold	30 Áin	0.76 Ám		2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.17

Description

General part information

TSM-104 Series

Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
