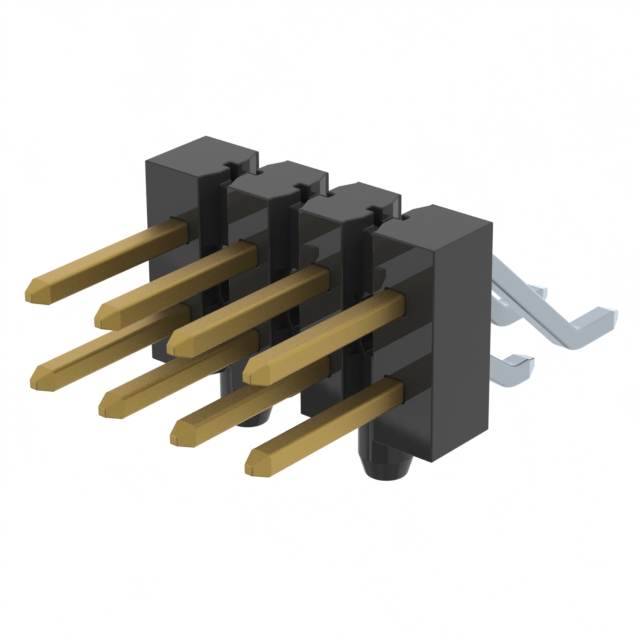

TSM-104-01-F-DH-A
ActiveSamtec Inc.
CONN UNSHROUDED HEADER HDR 8 POS 2.54MM SOLDER RA SIDE ENTRY SMD BULK
Deep-Dive with AI
Search across all available documentation for this part.
TSM-104-01-F-DH-A
ActiveSamtec Inc.
CONN UNSHROUDED HEADER HDR 8 POS 2.54MM SOLDER RA SIDE ENTRY SMD BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSM-104-01-F-DH-A |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.24 in |
| Insulation Height | 6.1 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
TSM-104 Series
...
| Part | Fastening Type | Material Flammability Rating | Insulation Height | Insulation Height | Connector Type | Insulation Material | Features | Contact Length - Mating | Contact Length - Mating | Contact Shape | Mounting Type | Insulation Color | Style | Contact Finish - Post | Number of Positions Loaded | Number of Positions | Contact Type | Termination | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Push-Pull | UL94 V-0 | 0.1 in | 2.54 mm | Cuttable Header | Liquid Crystal Polymer (LCP) | Board Guide Pick and Place | 8.13 mm | 0.32 in | Square | Surface Mount | Black | Board to Board Cable | Tin | All | 4 | Male Pin | Solder | 1 | 105 ░C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | |||||||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.12 in | 3.05 mm | Header | Liquid Crystal Polymer (LCP) | 8.13 mm | 0.32 in | Square | Surface Mount Right Angle | Black | Board to Board Cable | Tin | All | 4 | Male Pin | Solder | 1 | 125 °C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | Gold | 30 Áin | 0.76 Ám | |||||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.12 in | 3.05 mm | Header | Liquid Crystal Polymer (LCP) | Board Guide Pick and Place | 8.13 mm | 0.32 in | Square | Surface Mount Right Angle | Black | Board to Board Cable | Tin | All | 4 | Male Pin | Solder | 1 | 105 ░C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | |||||||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.1 in | 2.54 mm | Cuttable Header | Liquid Crystal Polymer (LCP) | Pick and Place | 10.67 mm | 0.42 in | Square | Surface Mount | Black | Board to Board Cable | Tin | All | 4 | Male Pin | Solder | 1 | 105 ░C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | |||||||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.24 in | 6.1 mm | Header | Liquid Crystal Polymer (LCP) | Board Guide | 5.84 mm | Square | Surface Mount Right Angle | Black | Board to Board Cable | Tin | All | 8 | Male Pin | Solder | 2 | 125 °C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | Gold | 3 µin | 0.076 µm | 0.23 in | 2.54 mm | 0.1 in | ||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.12 in | 3.05 mm | Header | Liquid Crystal Polymer (LCP) | Board Guide Pick and Place | 8.13 mm | 0.32 in | Square | Surface Mount Right Angle | Black | Board to Board Cable | Tin | All | 4 | Male Pin | Solder | 1 | 125 °C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | Gold | 30 Áin | 0.76 Ám | ||||
Samtec Inc. | Push-Pull | UL94 V-0 | Header | Liquid Crystal Polymer (LCP) | 5.84 mm | Square | Board Edge Straddle Mount | Black | Board to Board Cable | Tin | 8 | Male Pin | Solder | 2 | 125 °C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | Gold | 30 Áin | 0.76 Ám | 0.23 in | 2.54 mm | 0.1 in | 7 | |||||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.1 in | 2.54 mm | Cuttable Header | Liquid Crystal Polymer (LCP) | Pick and Place | 3.05 mm | 0.12 in | Square | Surface Mount | Black | Board to Board Cable | Tin | All | 8 | Male Pin | Solder | 2 | 125 °C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | Gold | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | ||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.1 in | 2.54 mm | Cuttable Header | Liquid Crystal Polymer (LCP) | Pick and Place | 3.05 mm | 0.12 in | Square | Surface Mount | Black | Board to Board Cable | Tin | All | 4 | Male Pin | Solder | 1 | 105 ░C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | |||||||
Samtec Inc. | Push-Pull | UL94 V-0 | 0.24 in | 6.1 mm | Header | Liquid Crystal Polymer (LCP) | 8.13 mm | 0.32 in | Square | Surface Mount Right Angle | Black | Board to Board Cable | Tin | All | 8 | Male Pin | Solder | 2 | 125 °C | -55 °C | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | Gold | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TSM-104 Series
Connector Header Surface Mount, Right Angle 8 position 0.100" (2.54mm)
