681M7W2103L001
ActiveMH Connectors

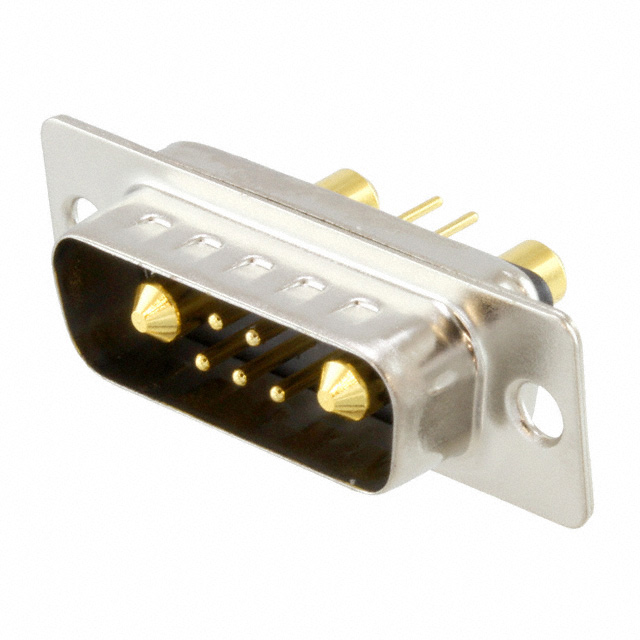

COMBINATION D SUB CONNECTOR, DA-7W2, PLUG, 5, 2, THROUGH HOLE, DA ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
681M7W2103L001
ActiveMH Connectors
COMBINATION D SUB CONNECTOR, DA-7W2, PLUG, 5, 2, THROUGH HOLE, DA ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 681M7W2103L001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Termination | Solder |
681M7W2 Series
| Part | Contact Material | Features | Dielectric Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Material Flammability Rating | Contact Finish | Color | Termination | Number of Positions [custom] | Number of Positions [custom] | Flange Feature | Connector Type | Shell Size, Connector Layout | Connector Style | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness | Number of Rows | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Copper Alloy | Grounding Indents | Polybutylene Terephthalate (PBT) | Signal and Power | -55 °C | 125 °C | Panel Mount Through Hole | UL94 V-0 | Gold | Black | Solder | 7 | 2 | 4-40 Board Side | Male Pins Plug | 2 (DA A) - 7W2 | Combo D-Sub | 5 A 40 A | Nickel Plated Steel | Flash | 2 | |
MH Connectors | Copper Alloy | Polybutylene Terephthalate (PBT) | Signal and Power | -55 °C | 125 °C | Panel Mount Through Hole | UL94 V-0 | Gold | Black | Solder | 7 | 2 | 4-40 Board Side | Receptacle Female Sockets | 2 (DA A) - 7W2 | Combo D-Sub | 5 A 40 A | Nickel Plated Steel | Flash | 2 | 250 VDC | |
MH Connectors | Copper Alloy | Grounding Indents | Polybutylene Terephthalate (PBT) | Signal and Power | -55 °C | 125 °C | Panel Mount Through Hole | UL94 V-0 | Gold | Black | Solder | 7 | 2 | Housing/Shell (Unthreaded) | Male Pins Plug | 2 (DA A) - 7W2 | Combo D-Sub | 5 A 40 A | Nickel Plated Steel | Flash | 2 | 250 VDC |
MH Connectors | Copper Alloy | Polybutylene Terephthalate (PBT) | Signal and Power | -55 °C | 125 °C | Panel Mount Through Hole | UL94 V-0 | Gold | Black | Solder | 7 | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 2 (DA A) - 7W2 | Combo D-Sub | 5 A 40 A | Nickel Plated Steel | Flash | 2 | ||
MH Connectors | Copper Alloy | Grounding Indents | Polybutylene Terephthalate (PBT) | Signal and Power | -55 °C | 155 °C | Panel Mount Through Hole | UL94 V-0 | Gold | Black | Solder | 7 | 2 | Housing/Shell (Unthreaded) | Male Pins Plug | 2 (DA A) - 7W2 | Combo D-Sub | 5 A 40 A | Nickel Plated Steel | Flash | 2 | |
MH Connectors | Copper Alloy | Board Lock Grounding Indents | Polybutylene Terephthalate (PBT) | Signal and Power | -55 °C | 125 °C | Panel Mount Through Hole | UL94 V-0 | Gold | Black | Solder | 7 | 2 | 4-40 Board Side | Male Pins Plug | 2 (DA A) - 7W2 | Combo D-Sub | 5 A 40 A | Nickel Plated Steel | Flash | 2 | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
681M7W2 Series
7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
